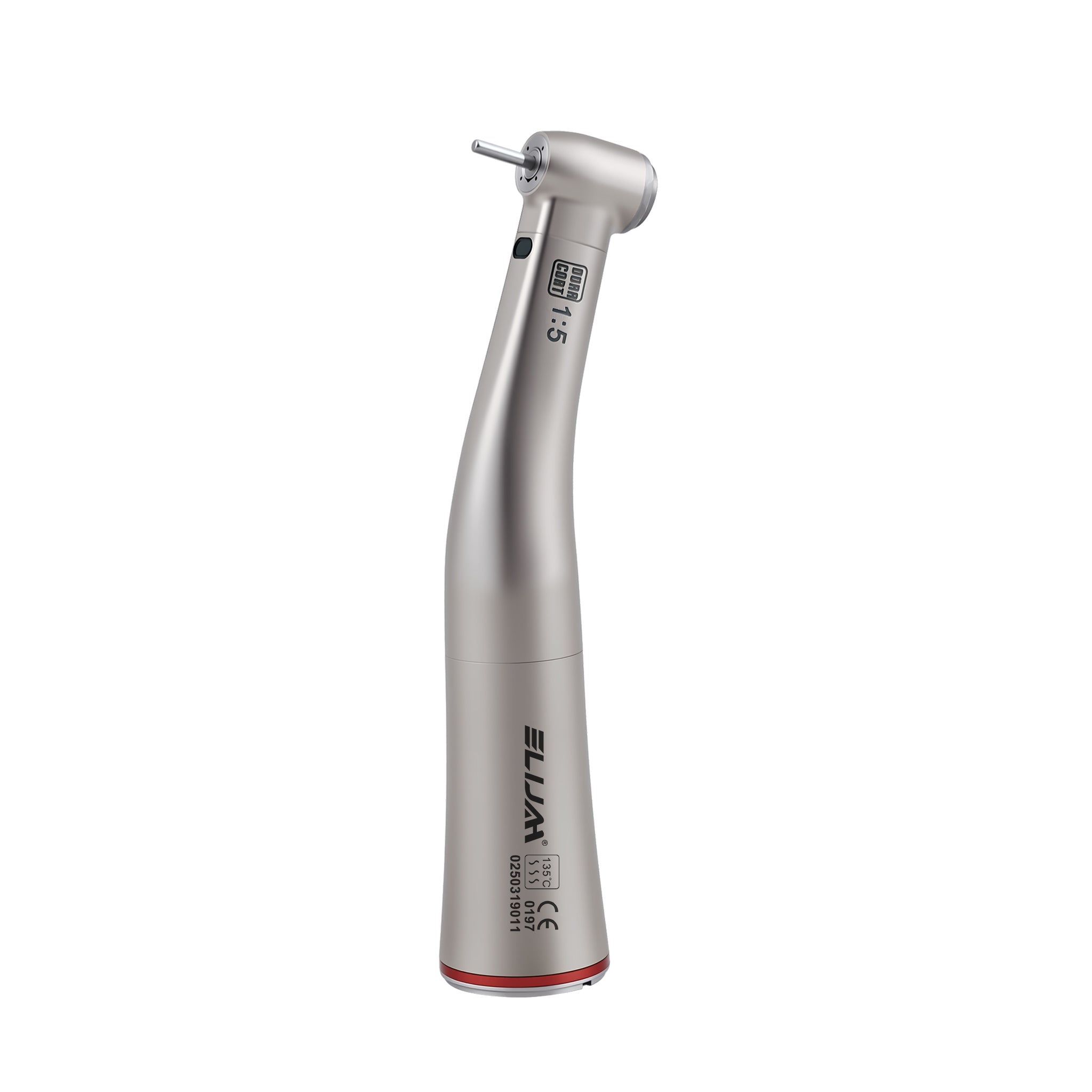

CYC226 Dental 1:5 Fiber Optic Contra Angle Handpiece-Class B

1:5 speed-increasing gear transmission
Multiplies motor speed 5 times, max output speed up to 200,000 rpm, delivers turbine-level cutting efficiency with stable electric motor torque, perfect for fast precise tooth preparationnsk-inc.com.
Cellular glass fiber optic lighting system
Integrated high-transmittance light guide, matched NSK fiber optic electric motor outputs bright shadow-free light, clearly visualizes narrow posterior molar operation field; glass light guide resists aging under repeated sterilization cycles.

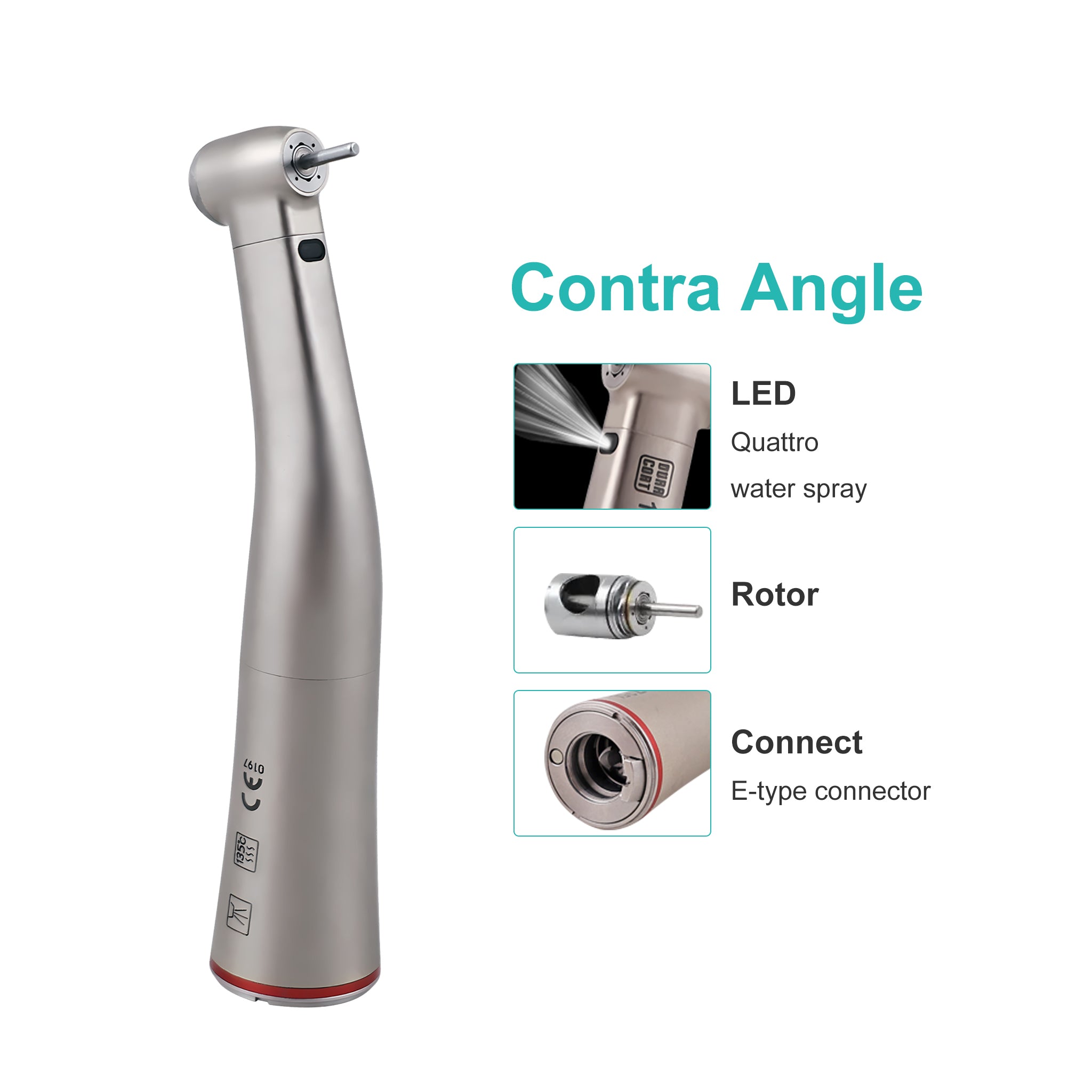

Quattro 4-way multi-directional inner water spray
Four surrounding water jets fully wrap the FG bur cutting area, rapid heat dissipation, thoroughly flush enamel/dentin debris to avoid dentin burn and postoperative hypersensitivity; built-in microfilter blocks water impurities to prevent spray clogging.
Lightweight medical titanium body with DURACOAT scratch-resistant coating
Biocompatible anti-allergy titanium outer shell, slim balanced ergonomic grip greatly relieves wrist fatigue during long aesthetic restoration procedures; smooth anti-scratch coating easy to wipe and disinfect.
NSK patented Clean Head double anti-retraction system
Dual-layer sealing blocks saliva, blood and debris backflow into internal gears and ceramic bearings, lowers cross-contamination risks and extends service life, meets global dental infection control standards.

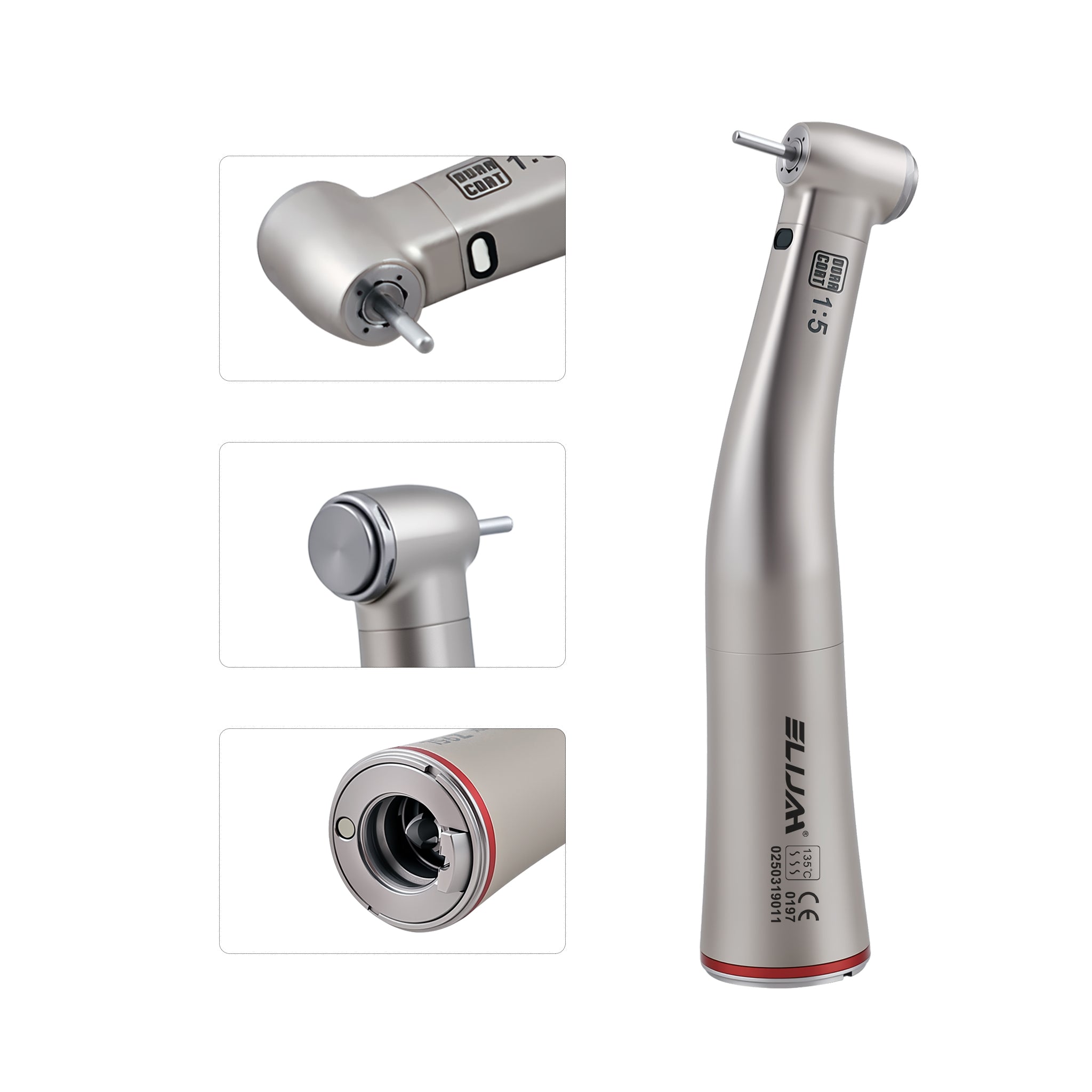

Push-button FG bur chuck
Tool-free one-click replacement of standard Φ1.6mm friction grip burs; clamping force strengthens automatically under cutting load to prevent bur wobble or slippingnsk-inc.com.
Premium silent ceramic bearings & precision gear set
Ultra-low vibration and quiet stable rotation, high wear resistance for long-term daily high-frequency aesthetic restorative work.
135°C high-pressure autoclave sterilizable
The whole handpiece withstands hundreds of repeated high-temperature disinfection cycles without performance attenuation.
ISO standard E-type fiber optic interface
Universal coupling fully compatible with NSK NL400 / NLX Nano series fiber optic electric micromotors.

Model CYC226 Fiber Optic 1:5 Speed Increaser)
Gear Ratio 1:5 speed increasing
Illumination Cellular glass fiber optic light guide (match fiber motor)
Cooling System Quattro 4-channel surrounding inner water spray + built-in microfilter
Max No-load Output Speed 200,000 rpm
Compatible Instrument Φ1.6mm standard FG friction grip burs
Chuck Mode Push-button auto chuck for FG burs
Housing Material Medical pure titanium outer body
Surface Coating DURACOAT anti-scratch coating
Sterilization Resistance Up to 135°C autoclave sterilization
Operating Noise ≤62 dB

Full ceramic aesthetic restoration preparation (core use)
Veneer, lithium disilicate crown, zirconia full crown & inlay precise tooth reduction; high speed + sufficient multi-water cooling ensures smooth cutting and clear margin observation.
General restorative cavity preparation
Deep caries excavation, complex posterior cavity shaping, old composite/amalgam filling removal with high cutting efficiency.
Occlusal adjustment & hard tissue trimming
Grinding overhigh occlusal contact points, trimming metal/porcelain crown overhangs and residual cement.
Minimally invasive cosmetic tooth reshaping
Precise enamel contour trimming for diastema closure and minor tooth shape modification.
Pediatric high-speed cutting treatment
Low-vibration smooth rotation reduces children’s discomfort during posterior molar cavity preparation.
General dental clinic advanced aesthetic work
Ideal fiber optic speed-increasing handpiece for clinics equipped with electric fiber motors, replacing air turbine for stable controllable high-speed cutting.
