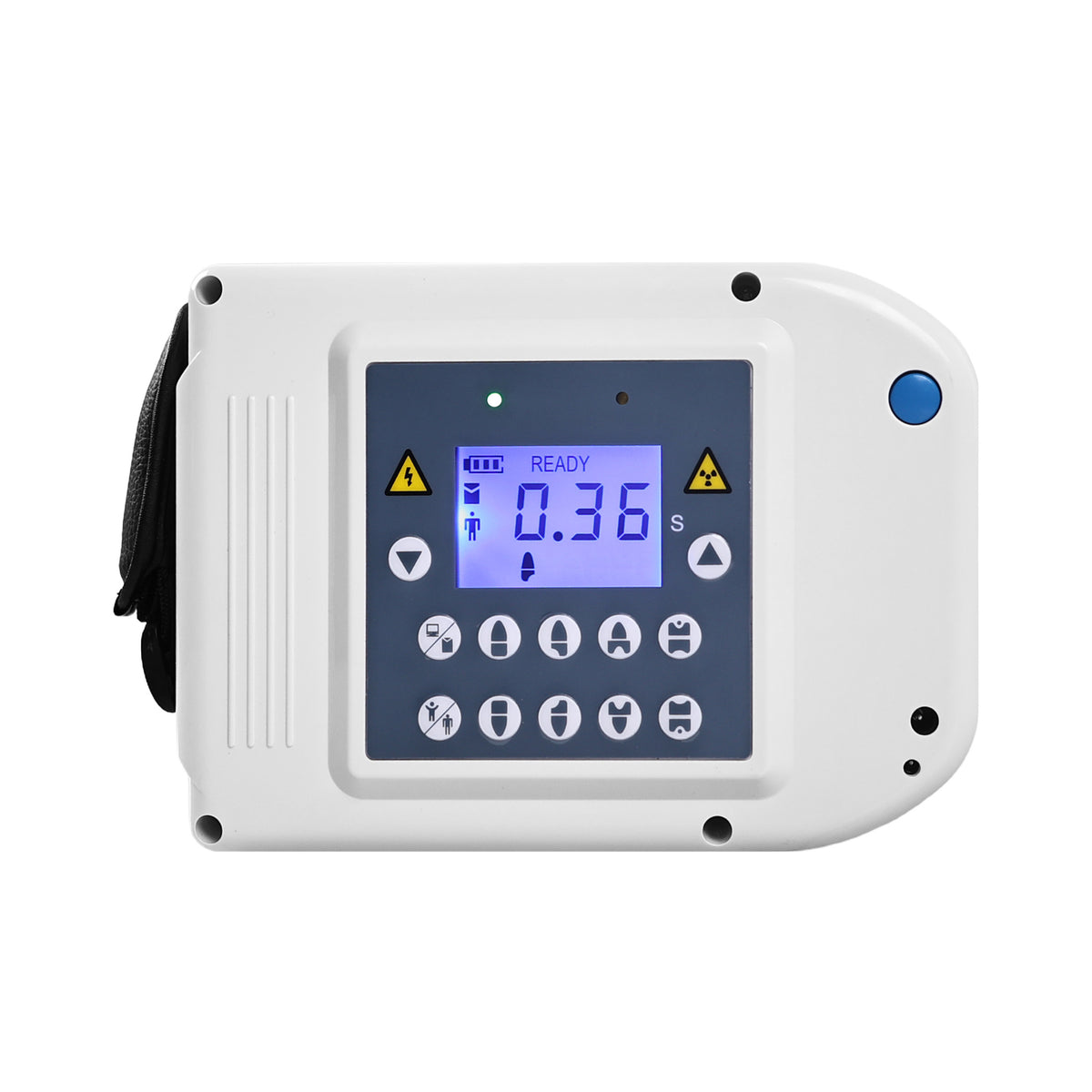

CYG001 Portable Dental X-Ray Unit with Screen

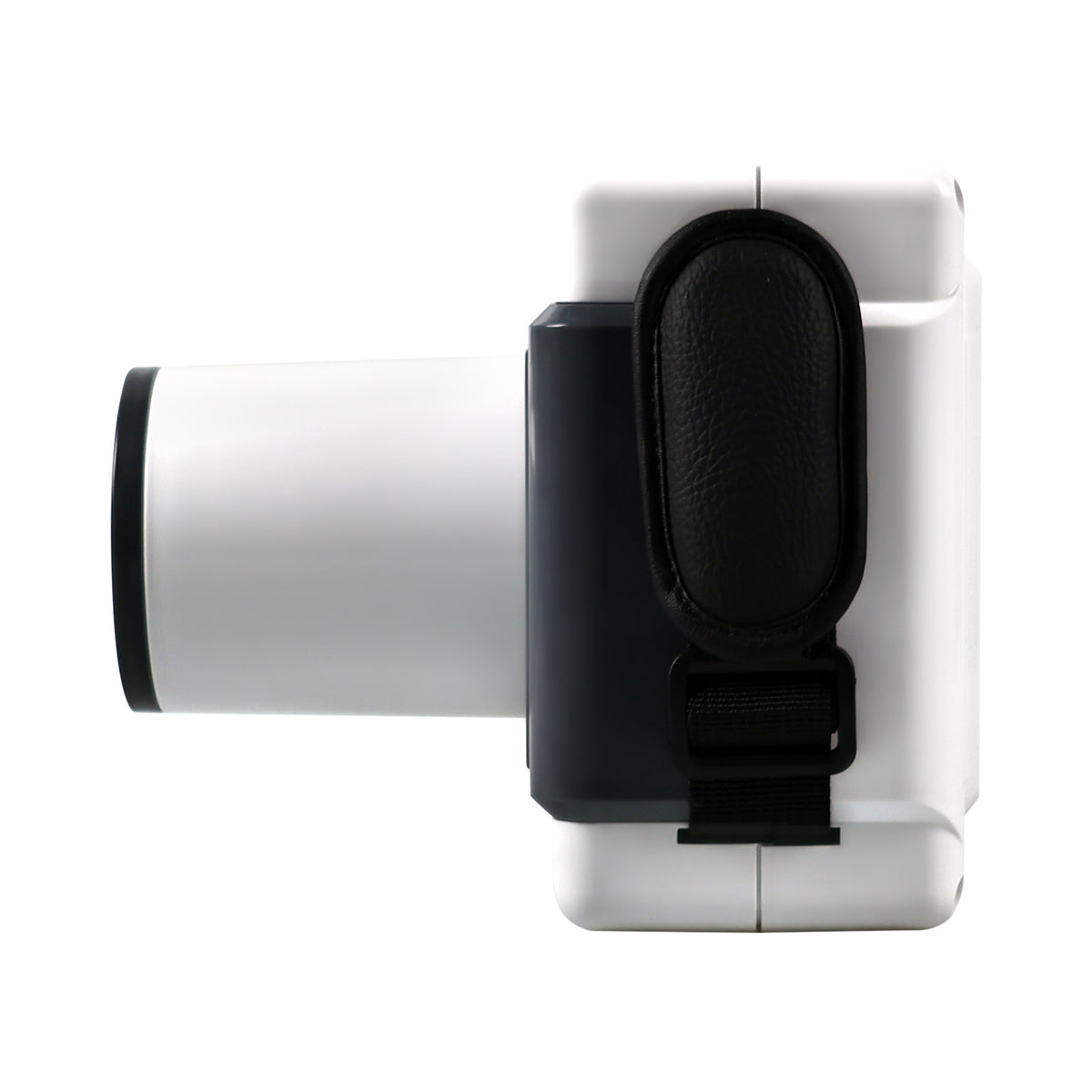

(1) Portable Compact Design: Light‑weight handheld dental X‑ray unit, easy to carry for chair‑side and mobile dental services.

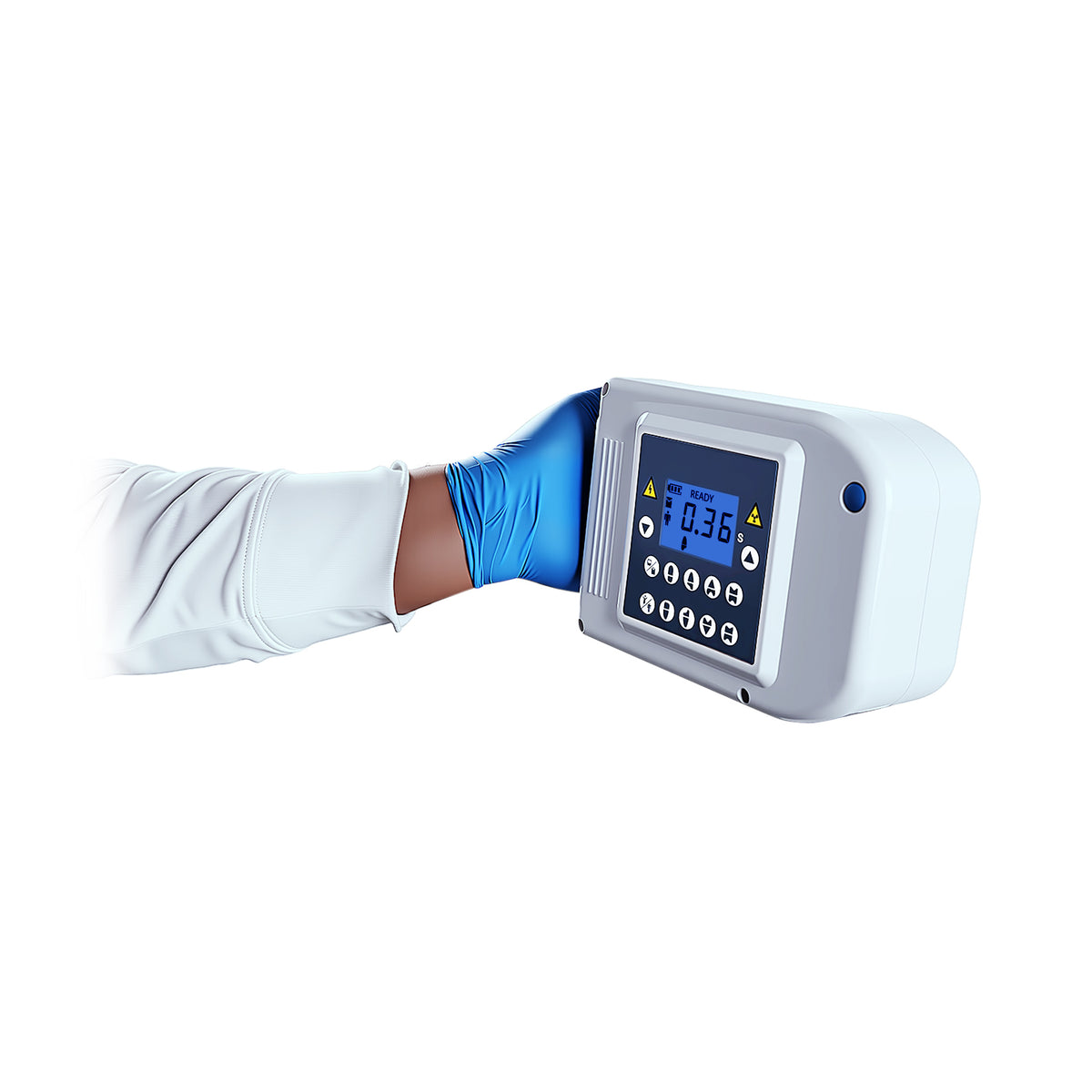

(2) Clear LCD Digital Display: Intuitive screen shows exposure time, battery status and working‑ready reminder for simple operation.
(3) Multiple Tooth Preset Modes: Built‑in pre‑programmed exposure parameters for anterior, premolar and molar teeth.
(4) Low‑radiation Safety Protection: Optimized radiation output with warning marks, effectively reduce radiation exposure for patients and operators.
(5) Rechargeable Battery Powered: Built‑in rechargeable battery, no external power cord required for flexible field‑use.

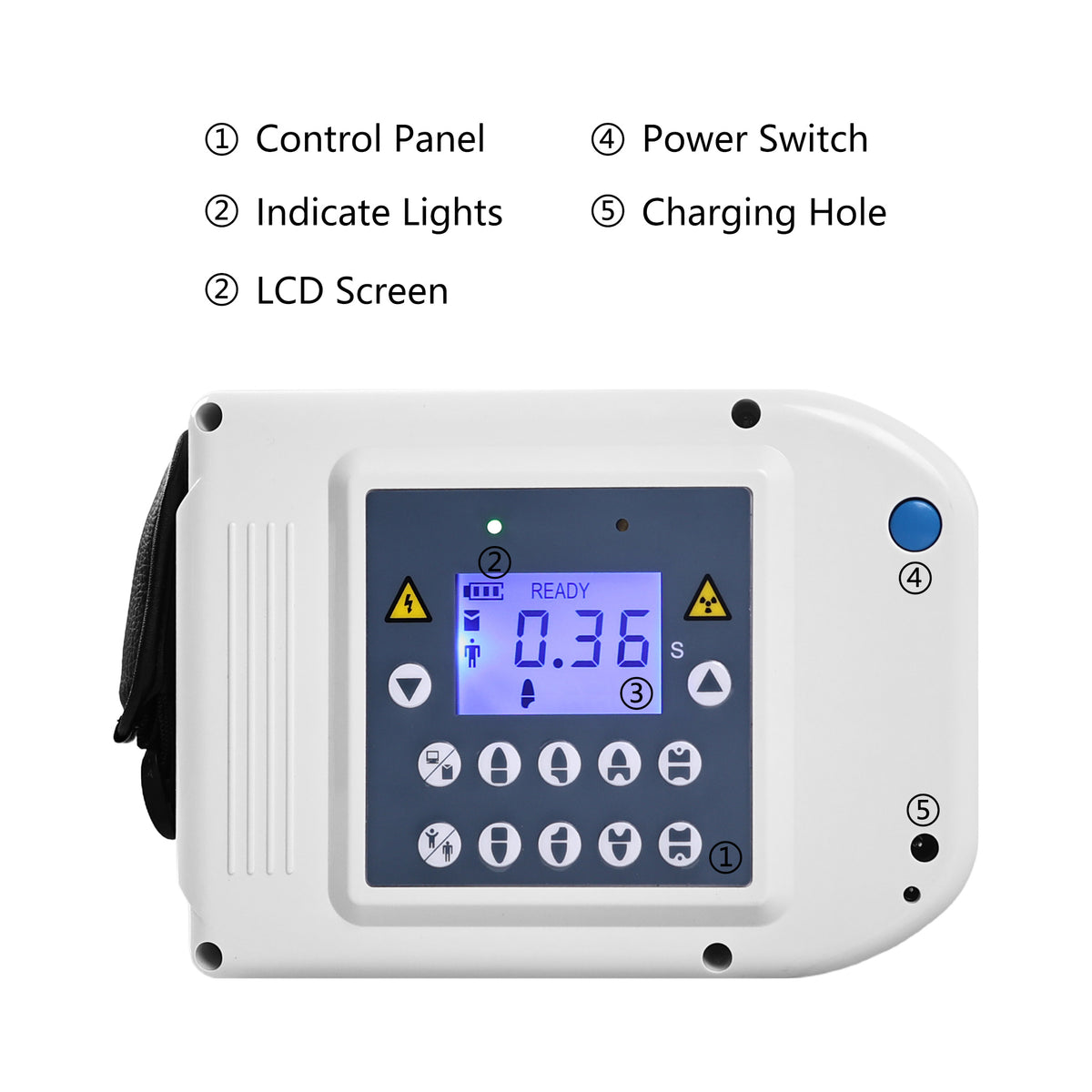

(6) Simple Button Operation: Human‑friendly keypad layout, dentists can quickly set parameters without complex training.

Tube Voltage :60KV
Tube Current :1MA
Exposure Time :0.1-2.0s
Frequency :30KHz
Rate Power :60VA
Distance from Skin to Cone :130mm
Tube Focus :0.3mmx0.3mm
Battery :DC 14.8V 6400mAh
Charger Input Voltage :AC100V~240V±10%
Output Voltage :DC 16.8V
Ambient Temperature :5℃~40℃
Relative temperature :<75% RH
Net Weight :2.5KG

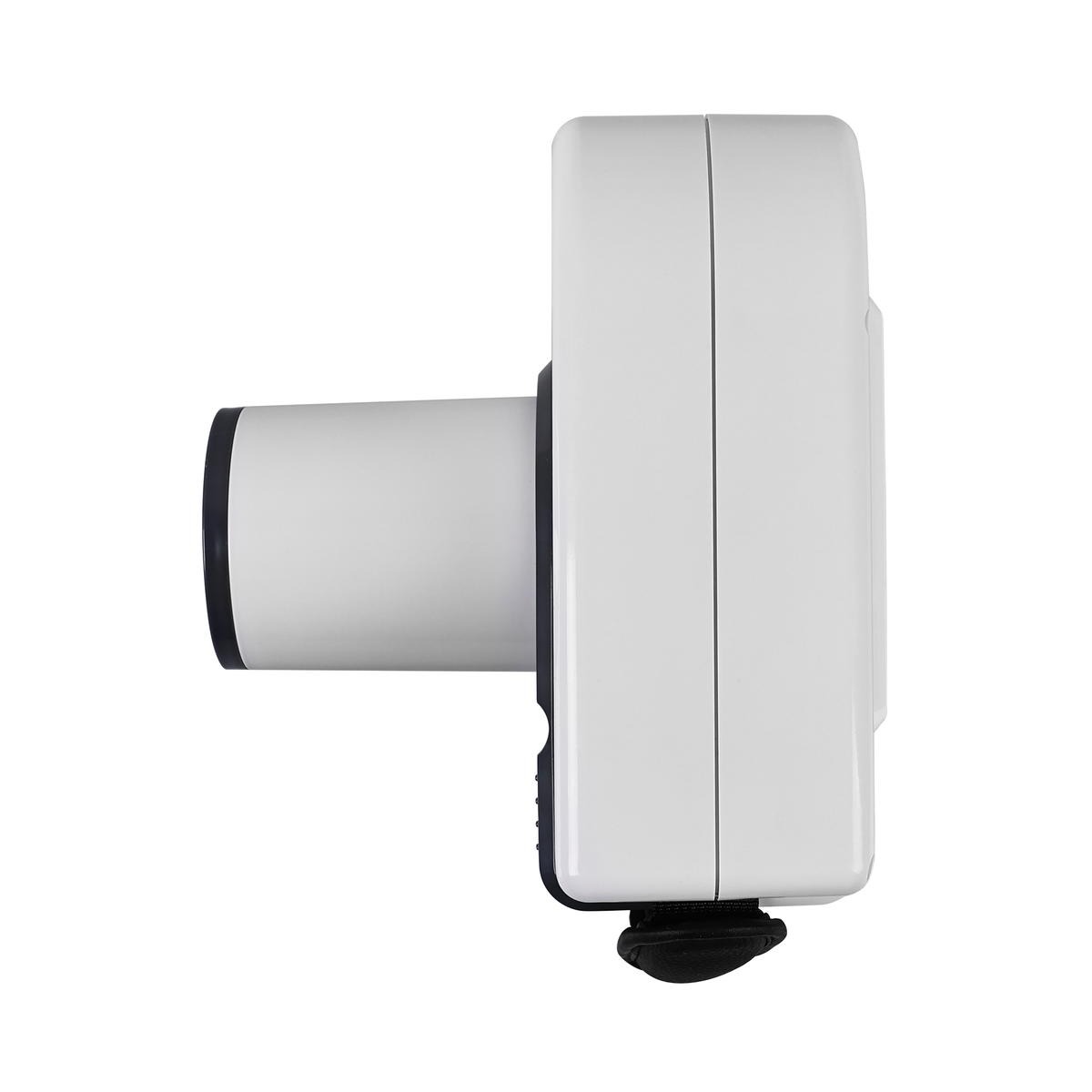

Size (mm) :138x165x185mm

(1) Intraoral Dental Radiography: Take high‑quality intra‑oral X‑ray images for general dental examination.
(2) Root‑canal Treatment Auxiliary Diagnosis: Observe root canal morphology, working length and periapical lesion status.
(3) Periodontal Disease Screening: Check alveolar bone resorption and periodontal bone loss for periodontal assessment.
(4) Mobile & Outreach Dental Service: Suitable for home‑visit, community oral screening and temporary dental clinics.
(5) Pre‑prosthetic Evaluation: Evaluate tooth condition before crown, bridge and denture restoration treatment.
(6) Daily Clinic Routine Examination: Assist dentists for caries detection, trauma tooth inspection and follow‑up review.
