CYG093 Dental X Ray Sensor DR730 APS CMOS 14lp/mm

Runyes DR730 Digital Intraoral X-Ray Sensor - APS CMOS

Professional digital intraoral X-ray sensor (RVG) featuring APS CMOS technology with GOS scintillator. Designed for high-resolution diagnostics including tooth decay and bone loss detection.

Key Features

• High-Sensitivity APS CMOS Chip: 1.9M effective pixels (1600×1200) with theoretical resolution of 27 lp/mm
• Compact and Lightweight: External dimensions only 39mm × 27.5mm for easy handling and patient comfort
• Efficient Image Transmission: USB 2.0 interface with strong compatibility for fast data transfer
• Wide Gray Scale Range: 0-4095 shades providing rich image contrast for accurate diagnosis
• Stable Performance: Only 6mm thickness with strong anti-interference capability

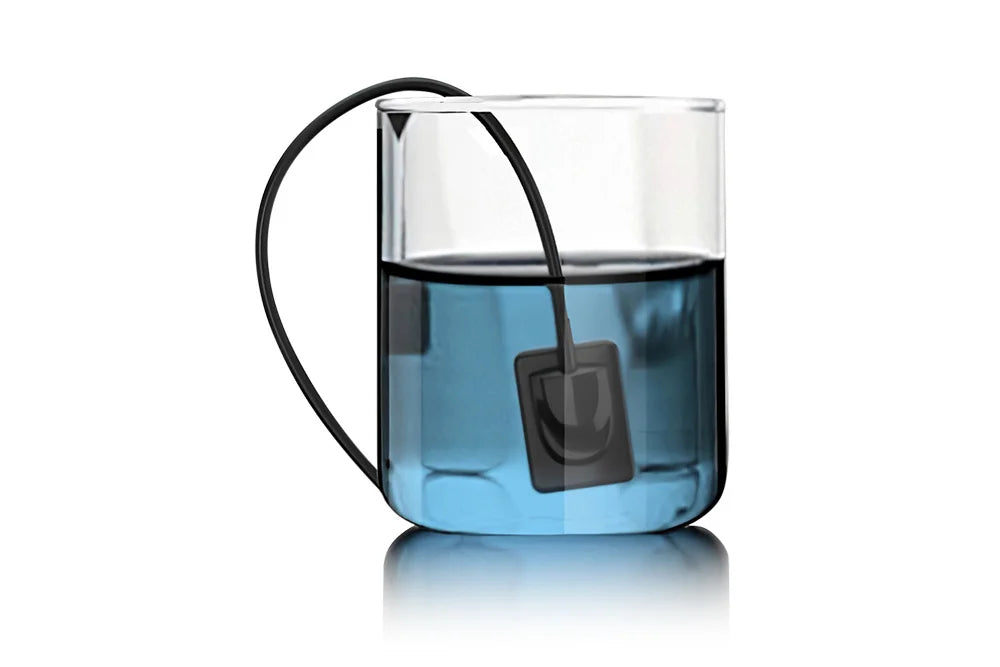

• IP68 Waterproof Rating: Corrosion-resistant plastic body for durability
• TWAIN Driver Support: Integrates with most third-party dental imaging software

Technical Specifications

• Model: DR730
• Sensor Type: APS CMOS
• External Dimensions: 39mm × 27.5mm
• Active Area: 30mm × 22.5mm (675mm²)
• Scintillator: GOS
• Pixel Size: 18.5μm
• Effective Pixels: 1.9M (1600×1200)
• Line Pair Resolution: Theoretical 27 lp/mm, Measured 14 lp/mm (GOS)
• Sensor Thickness: 6mm
• Gray Scale Range: 0-4095
• Power Supply: 5.0V (≥4.25V)
• Interface: USB 2.0
• Supported OS: Windows 2000/XP/Win7/Win8/Win10 (32-bit & 64-bit)

Software & Compatibility

• Compatible with Windows XP, 7, 8, 8.1, and 10 (32-bit and 64-bit)
• TWAIN driver for integration with third-party dental imaging software
• HandyServer software for network sharing between treatment rooms

Clinical Applications

Ideal for detecting tooth decay, bone loss, periapical lesions, and other oral pathologies. Suitable for daily diagnostic imaging in dental clinics and medical institutions.
