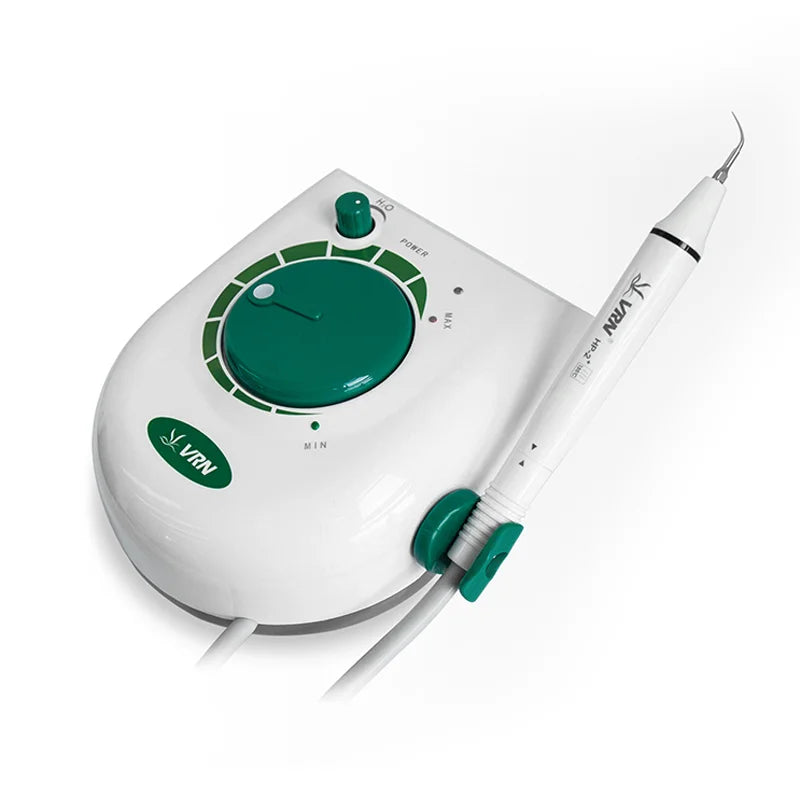

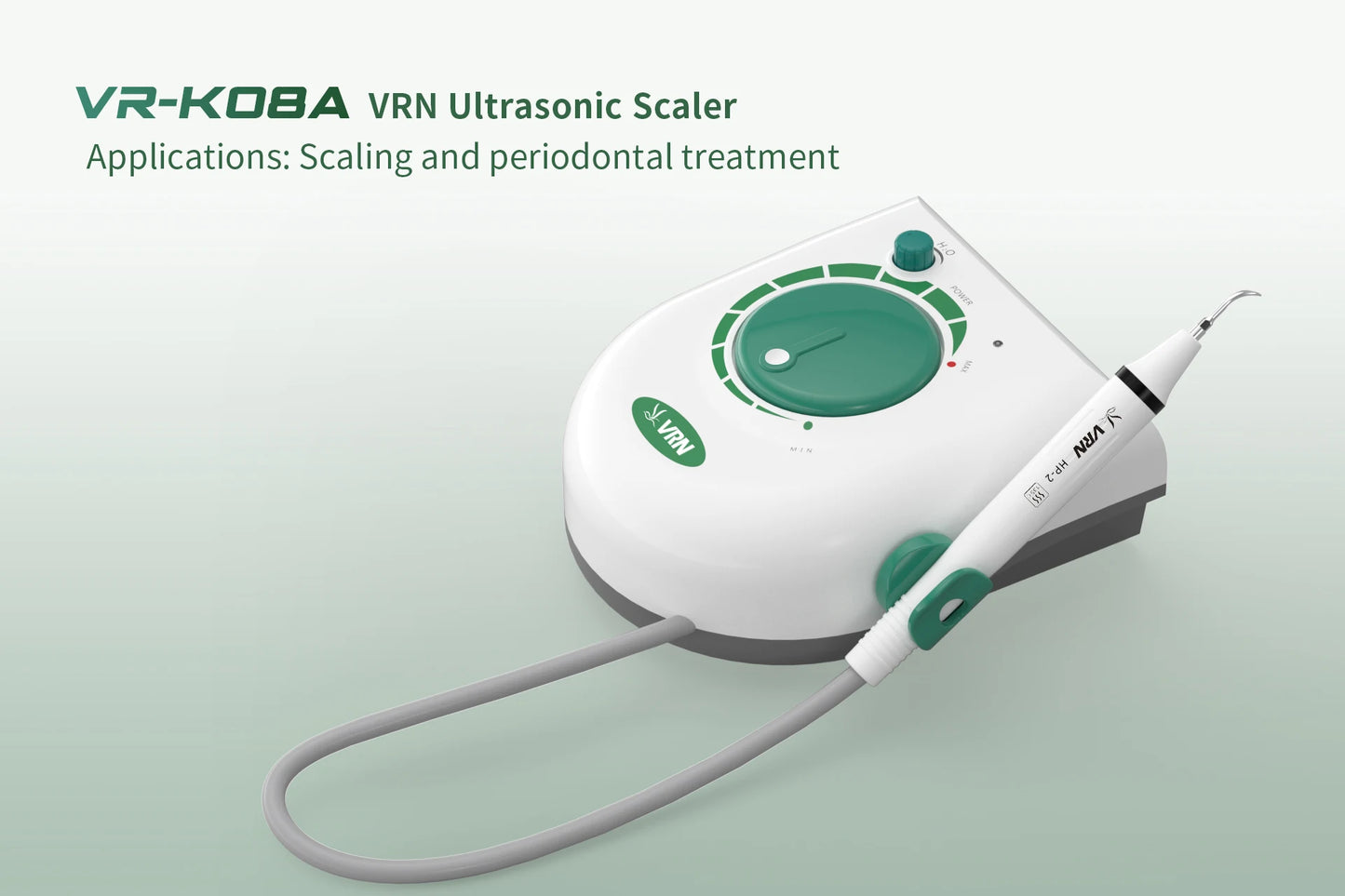

CYB054 Dental Ultrasonic Scaler Scaling Perio K08A VRN

Model

VR-K08A

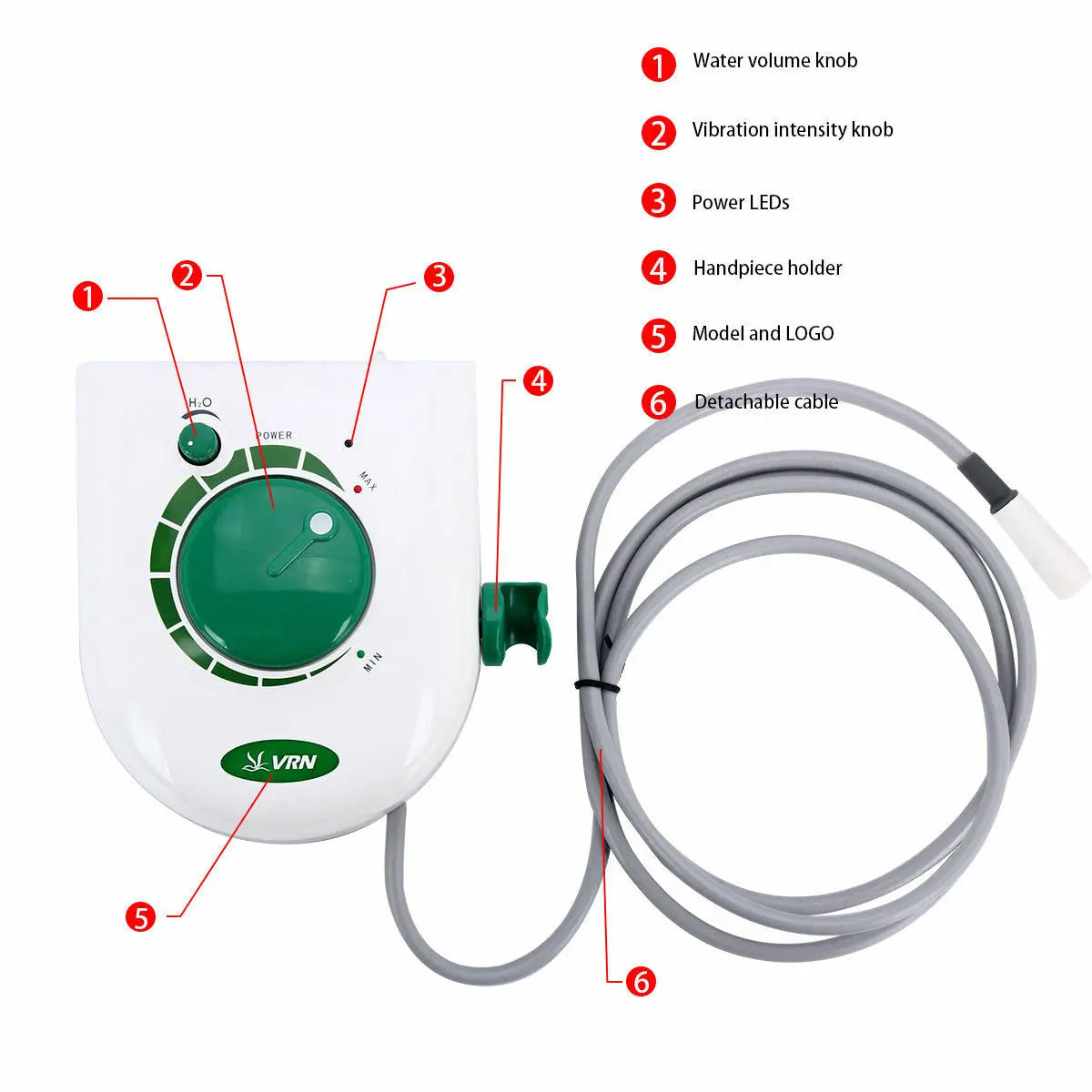

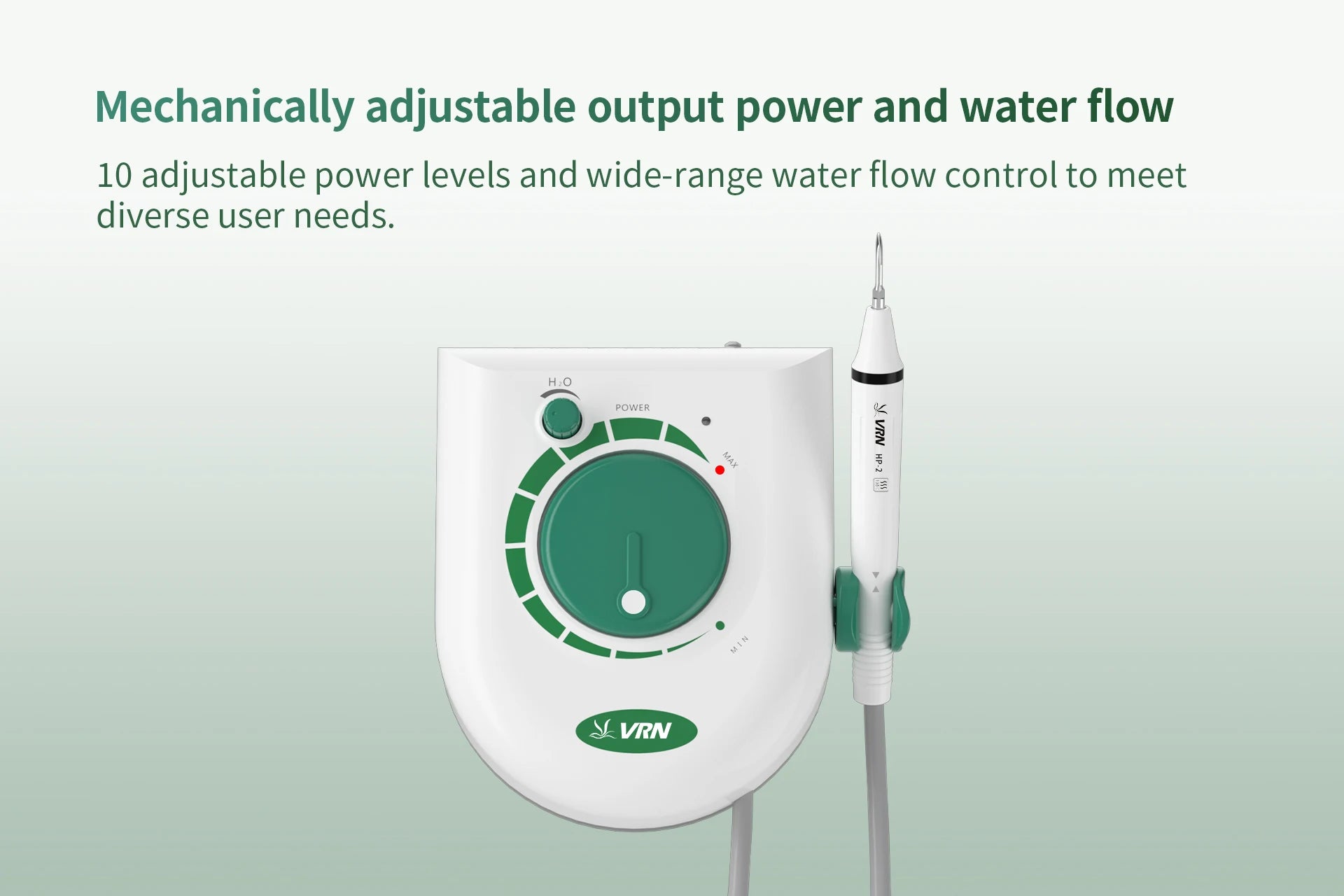

Control

Potentiometer

Handpiece

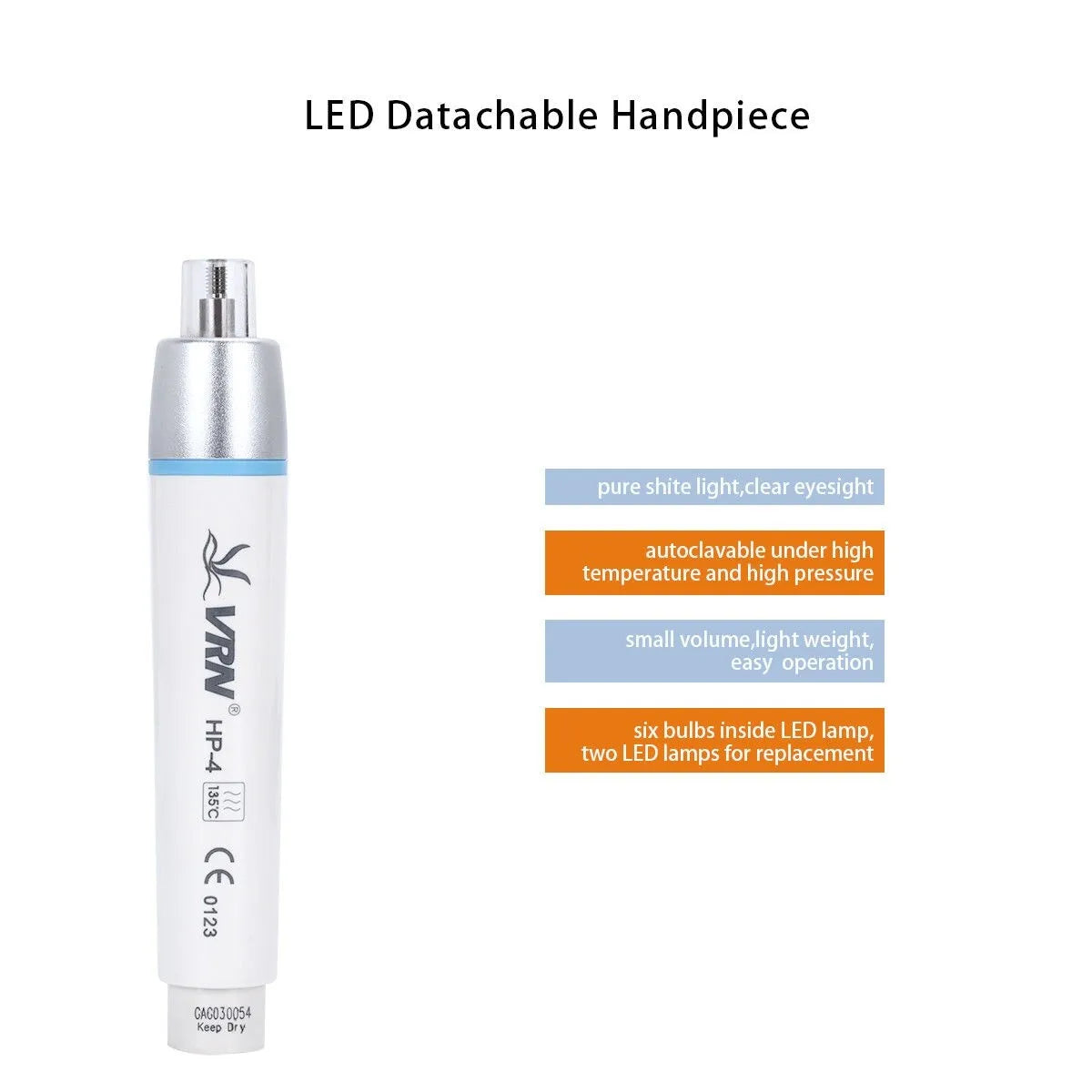

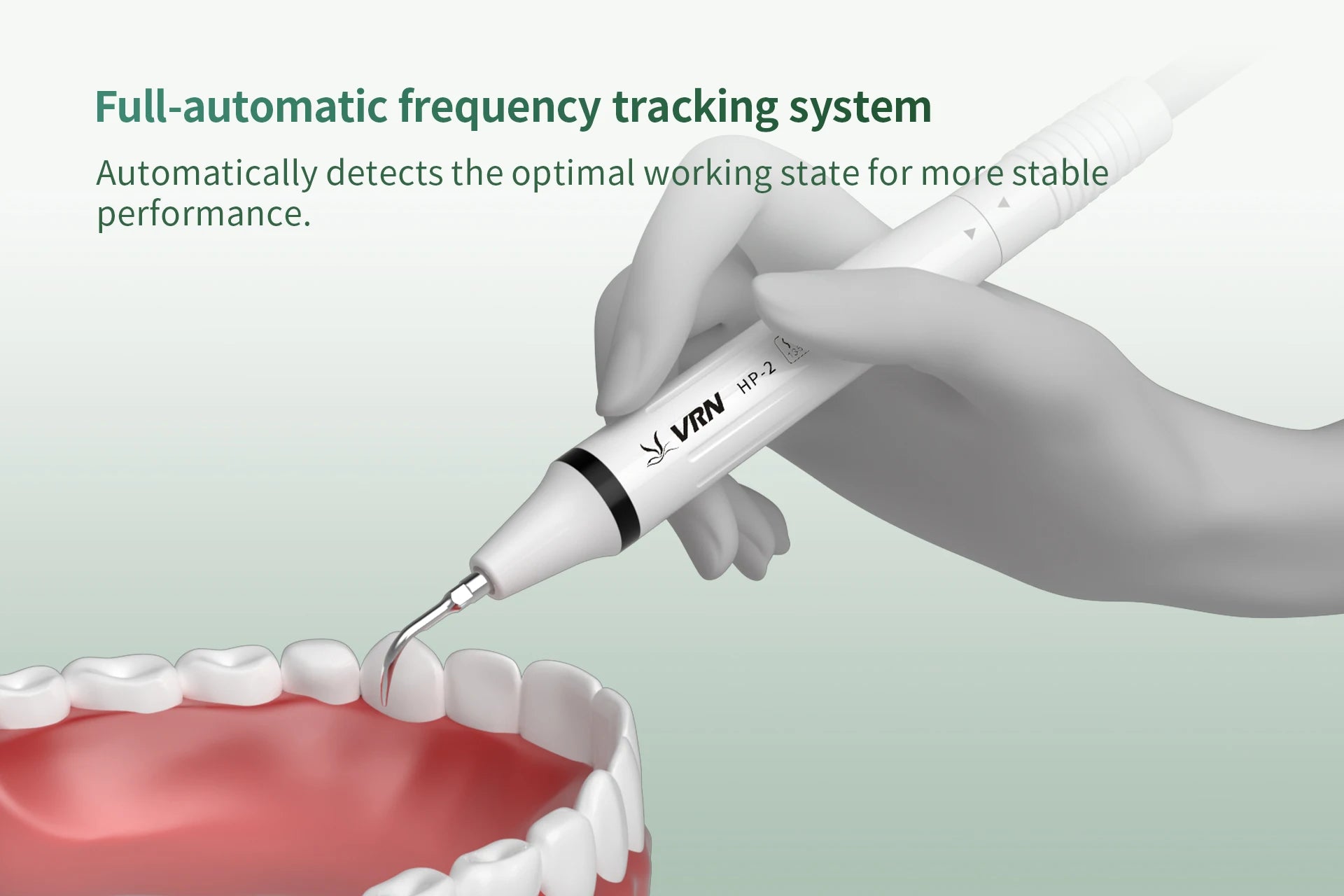

LED Detachable Pieze Handpiece HP-2 ×1

Operating Mode

Ultrasonic Scaling

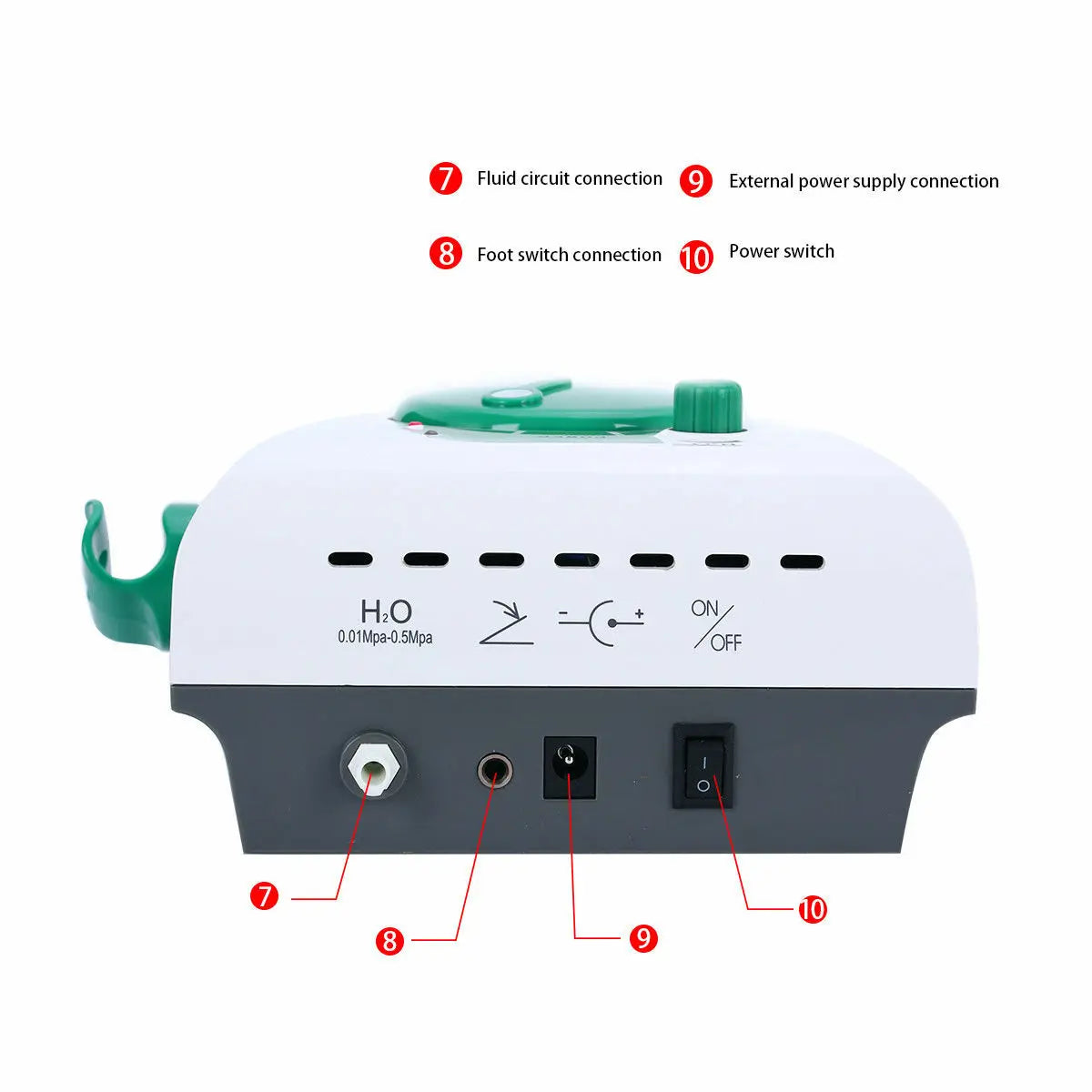

External Water Hose

Available

Power Input

100-240VAC 50/60Hz

Foot Pedal

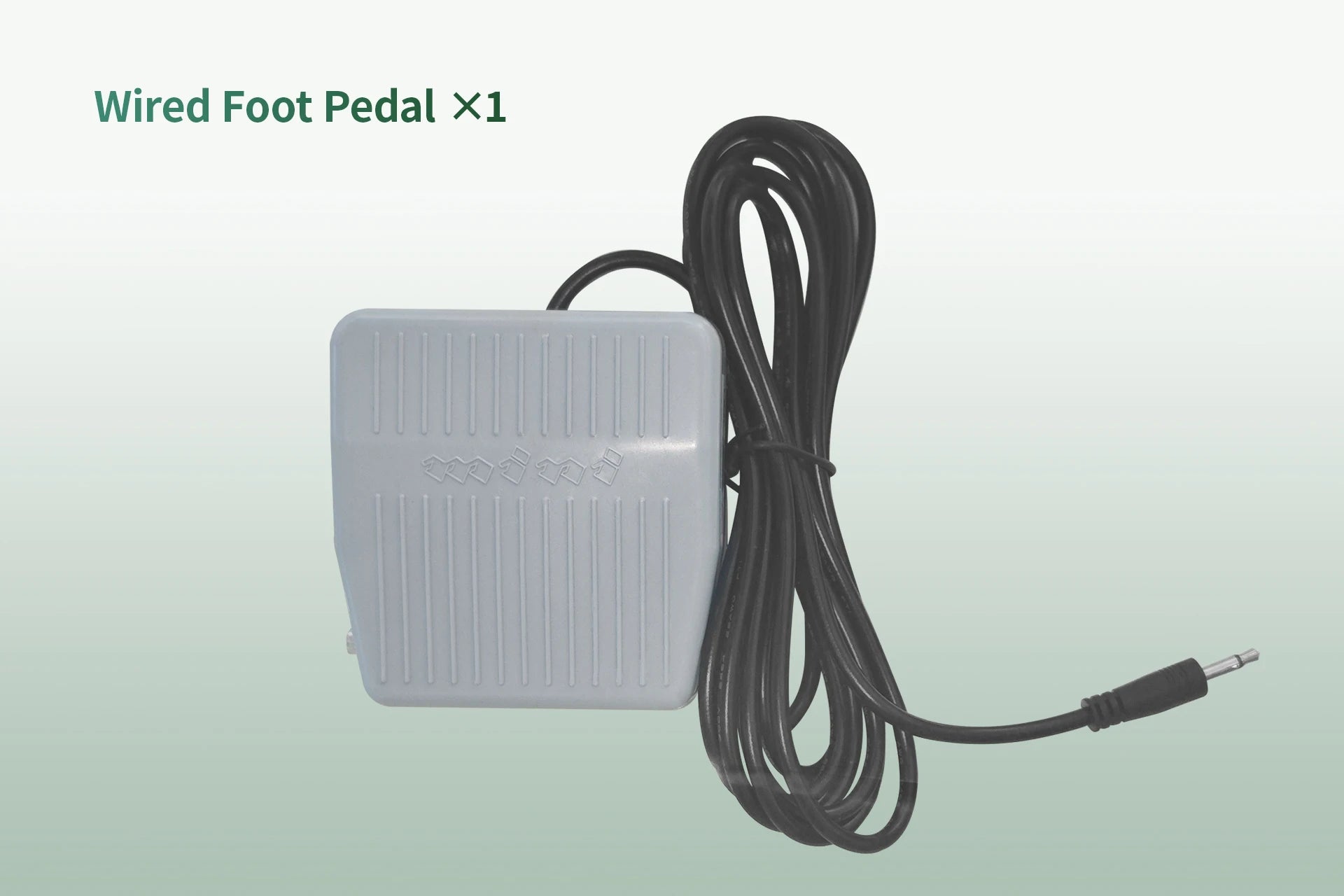

Wired Foot Pedal (IPX1) ×1

Main Unit Weight

0.75kg

Input Voltage

30VDC

Input Power

30VA～48VA

Vibration amplitude

Minimum: 1 um; deviation -50%
Maximum: 100 μ m; deviation +50%

Output half-excursion force

Minimum: 0.1 N; deviation -50%.
Maximum: 2 N; deviation +50%

Water pressure

0.01MPa～0.5MPa (0.1bar～5bar)

Frequency

25kHz～31KHz

Tips Hardness

50HRC

Packing Size

270*230*140mm

Storage Environment

Temperature：-20℃～55℃
Relative humidity：≤90%
Atmospheric pressure：70kPa～106kPa

Working Environment

Temperature:5℃～40℃
Relative humidity: ≤80%
Atmospheric pressure: 70kPa～106kPa
Applicative range of power supply and voltage: 100-240VAC 50/60Hz

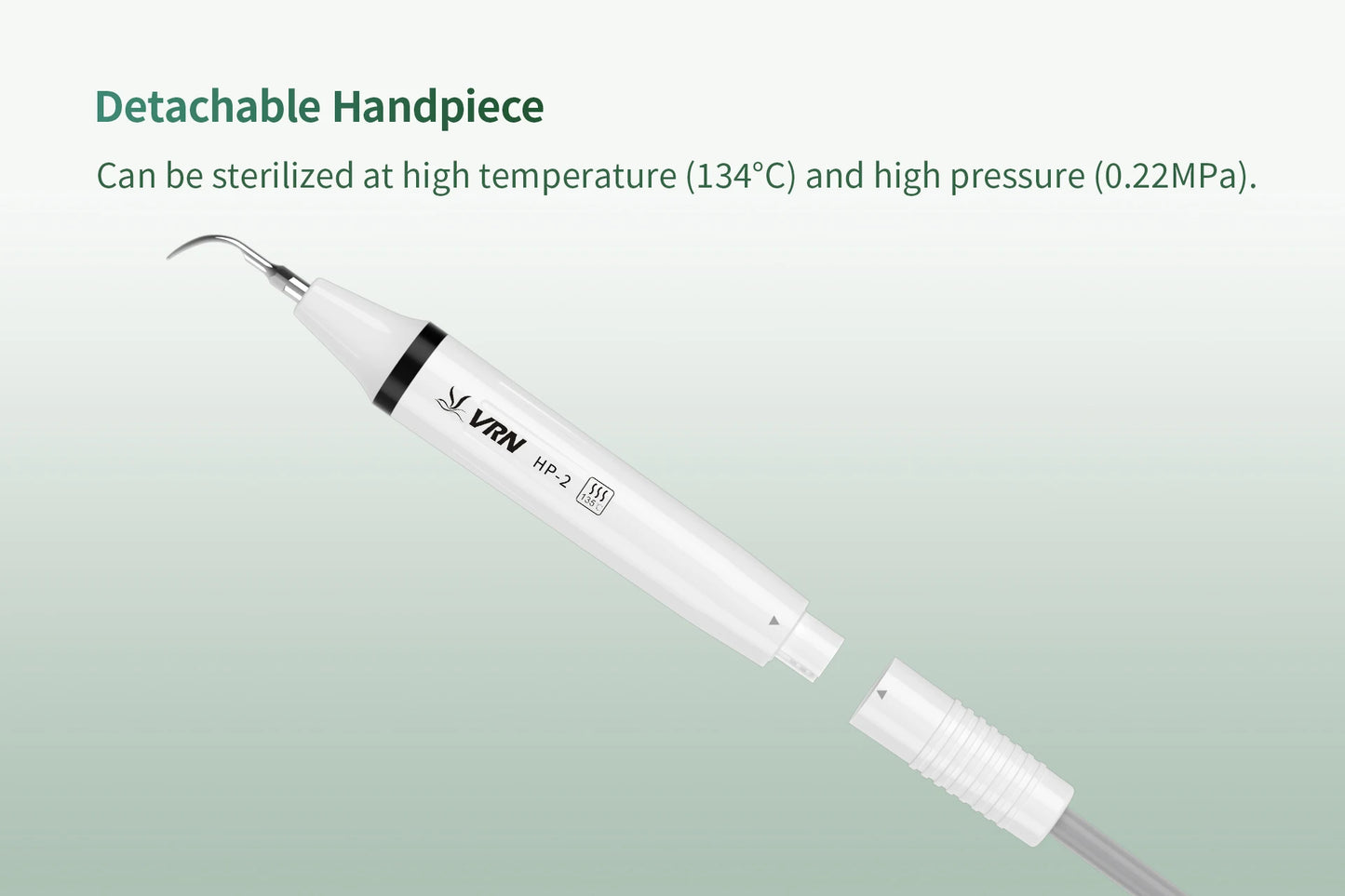

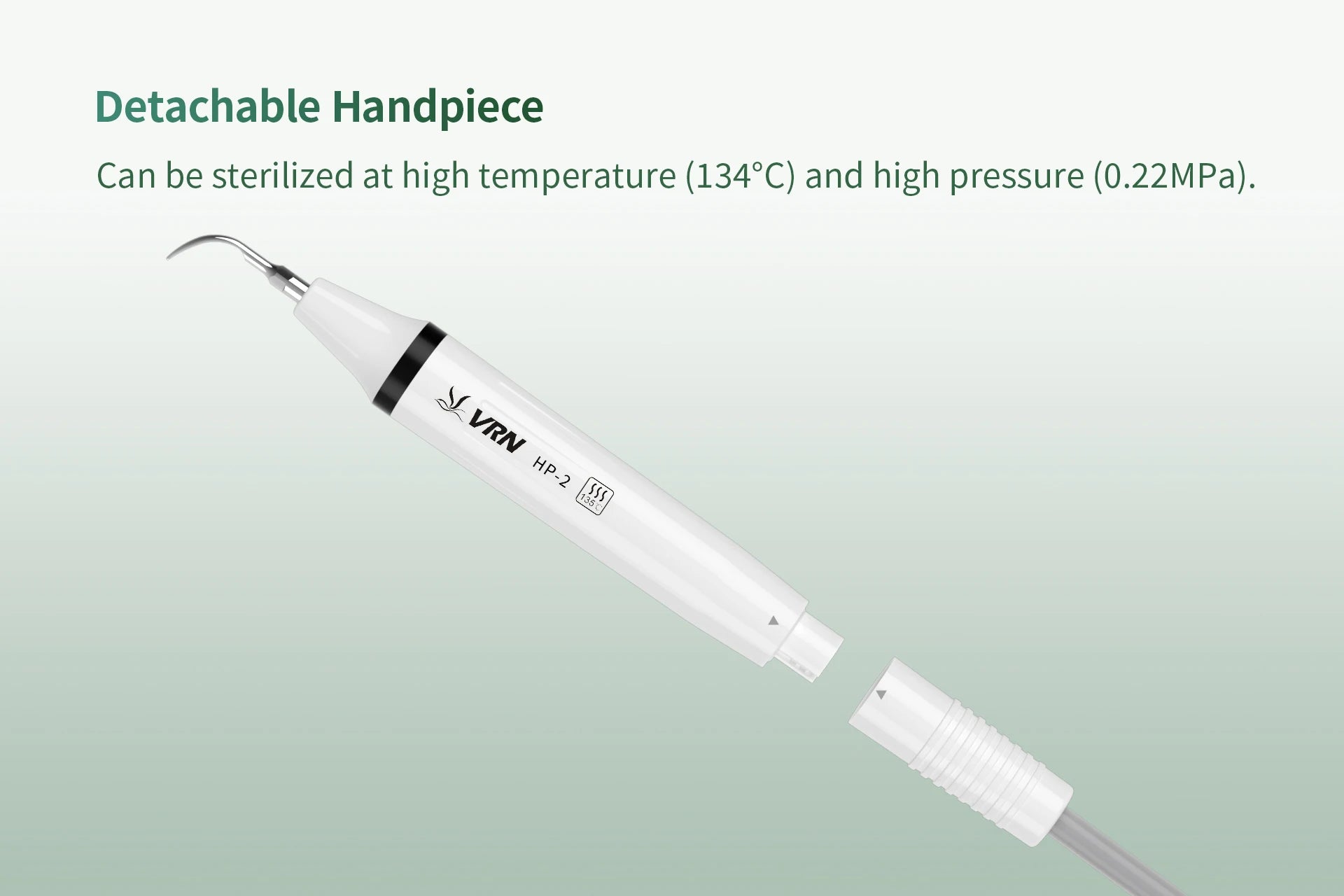

handpiece can be sterilized

134℃ and 0.22MPa pressure

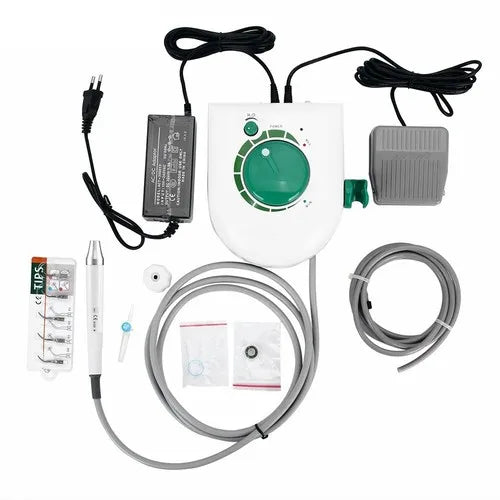

Packing List

Main Unit * 1

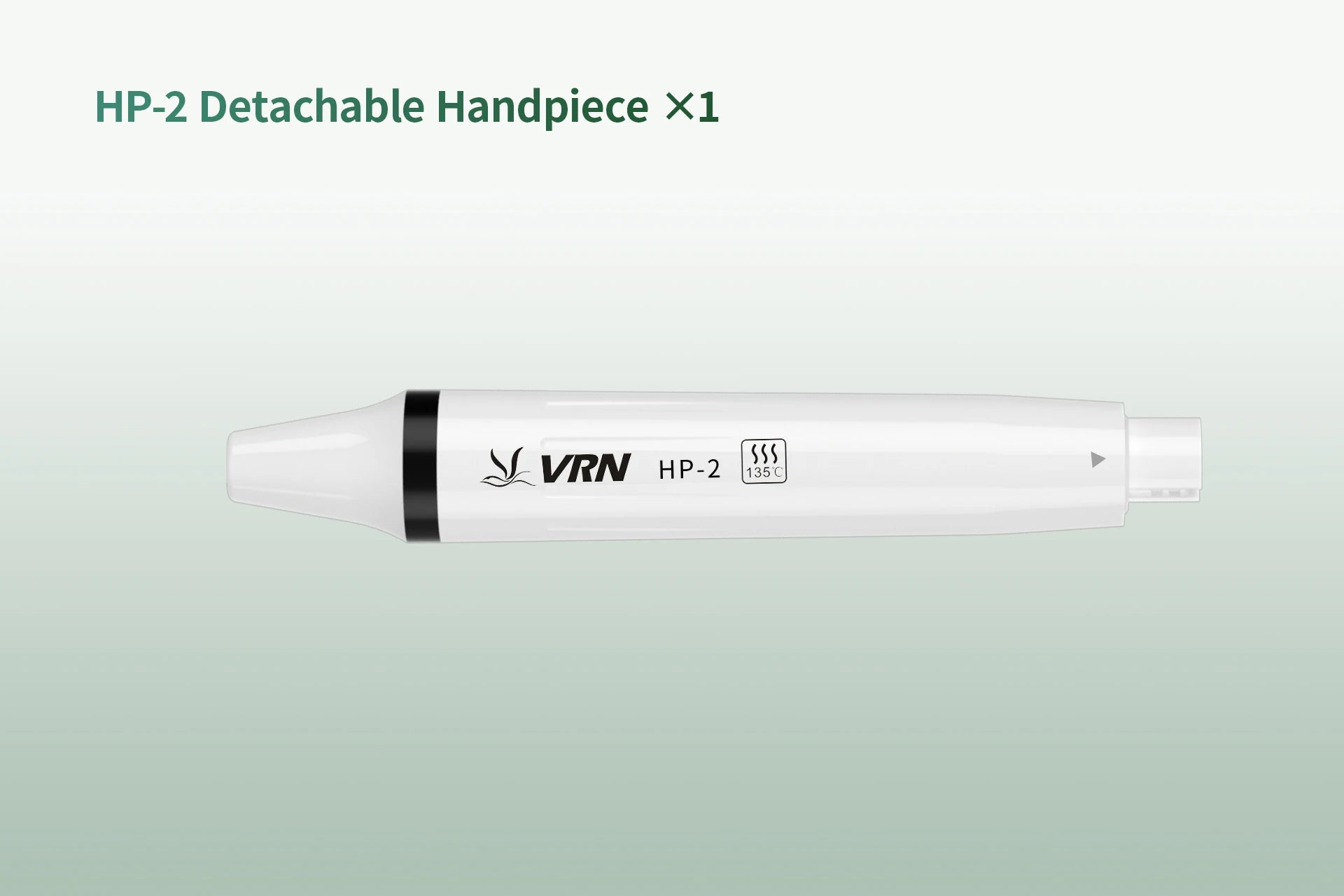

HP-2 Handpiece * 1
Power Adapter * 1
Wired Foot Switch * 1

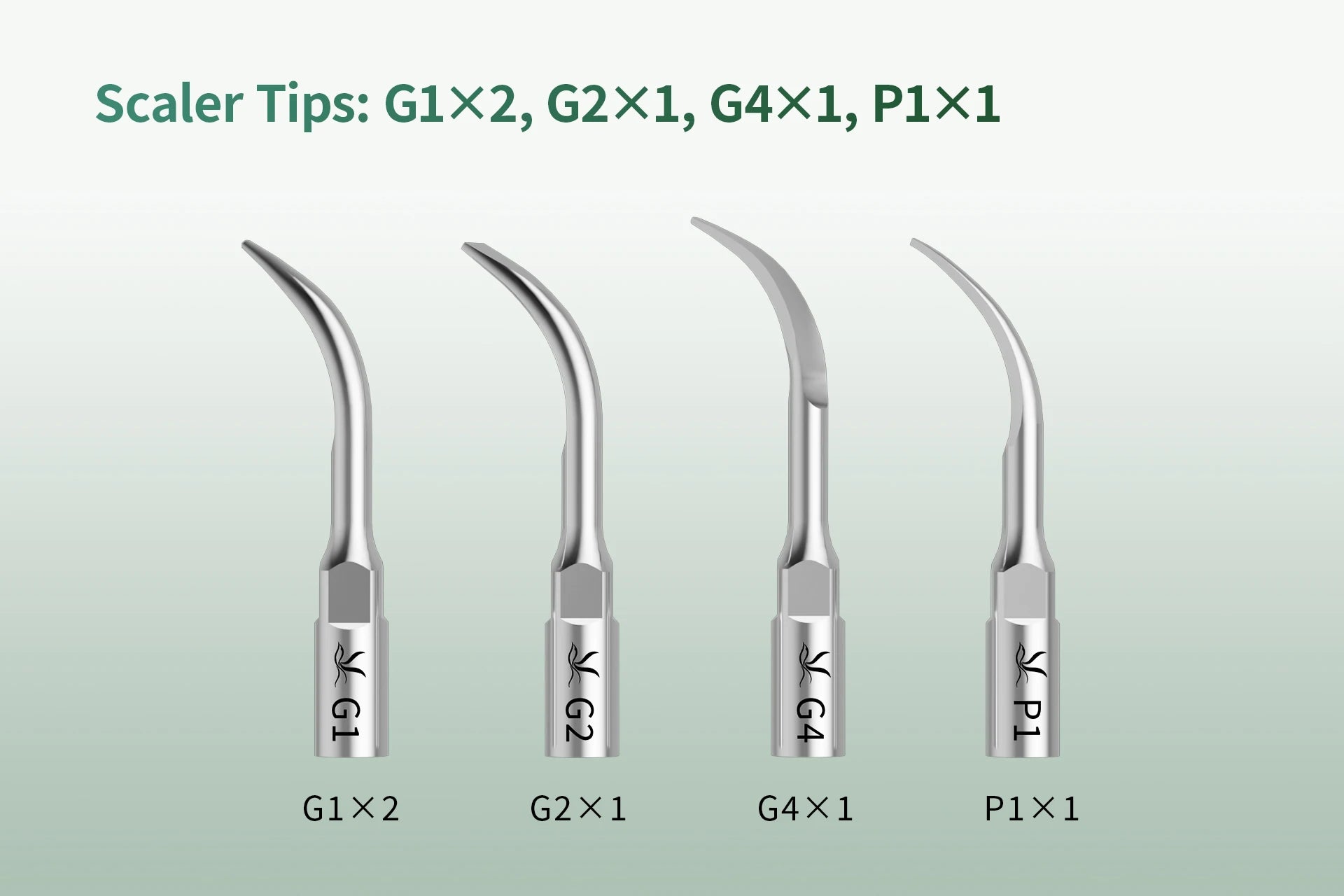

G1 Tips * 2
G2 Tip * 1
G4 Tip * 1
P1 Tip * 1

Puncture Device * 1
Pu Pipe * 1
Torque Torque Wrench * 1
O-ring * 2
Instruction Manual * 1
Tips instruction Manual * 1
Tips Reprocessing instruction * 1
QC Certificate * 1
