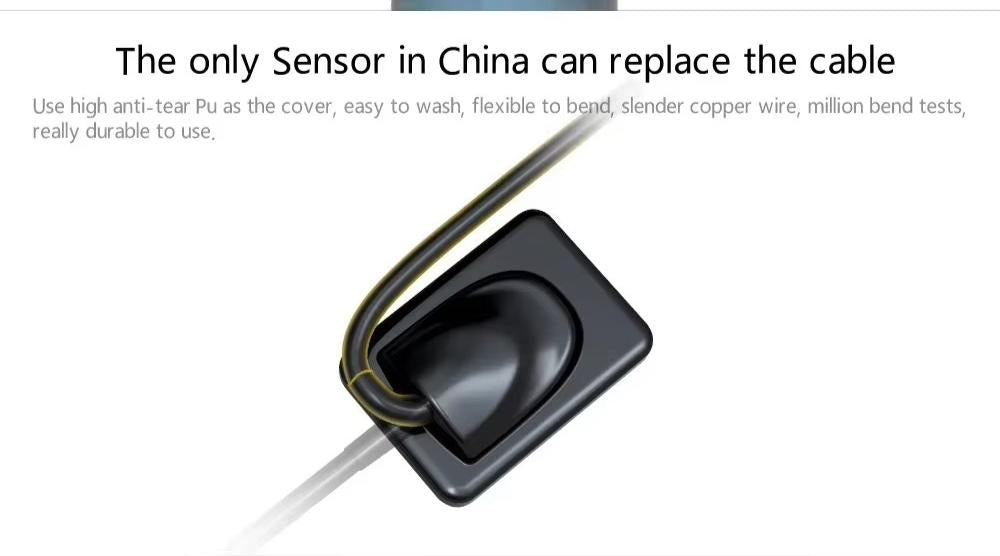

CYG017 Dental X-Ray Sensor HDR600 APS CMOS 3s Imaging

HDR600 Dental X-Ray Sensor - APS CMOS 3-Second Instant Imaging

Professional dental X-ray sensor featuring new APS CMOS technology with instant 3-second imaging and IPX7 waterproof rating. Delivers maximum image quality with minimum radiation exposure.

Key Features

• New APS CMOS Sensor: Long lifetime with superior image quality
• 3-Second Instant Imaging: X-ray image shows on computer automatically within 3 seconds
• High Measured Resolution: 12-14 lp/mm for exceptional detail
• Better than 14 or 20 Linepair Resolution: Superior diagnostic capability
• Fiber Optical Plate (FOP) Included: Enhanced light transmission
• Exceptional Image Quality at Low Dose: Minimizes patient radiation exposure
• Extremely Robust Design: Durable construction for everyday handling
• TWAIN Driver: Compatible with KODAK, SIRONA, SCHICK software

Technical Specifications

• Chip Type: APS CMOS sensor
• Fiber Optical Plate: Yes
• Scintillator: GOS
• External Dimension: 32.3 × 44.3mm (size 2)
• Sensor Active Area: 27 × 36mm (size 2)
• Pixel Size: 18.5μm
• Image Pixel: 2.7M (1920×1440) (size 2)
• Resolution: Theoretical 27lp/mm, True 14lp/mm
• Operating System: Windows 2000/XP/Win7/Win8 (32bit & 64bit)
• PC Interface: USB 2.0 (full speed)
• Supply Voltage: 5.0V (4.25V min)
• Supply Current: 500mA max
• Digitization: 12 bits per pixel
• Driver: Free driver (Windows)

Control Unit Specifications

• Overall Size: 92 × 66 × 28mm
• 4,095 Shades of Gray: Provides depth and density
• 16-bit Image Acquisition
• USB Bus Powered: No batteries or charging system needed

Clinical Applications

Ideal for oral diagnosis, implant planning, and endodontic treatment. Powerful HandyDentist imaging software with advanced image processing algorithms and patient management capabilities.
