- Description
● Product Name:

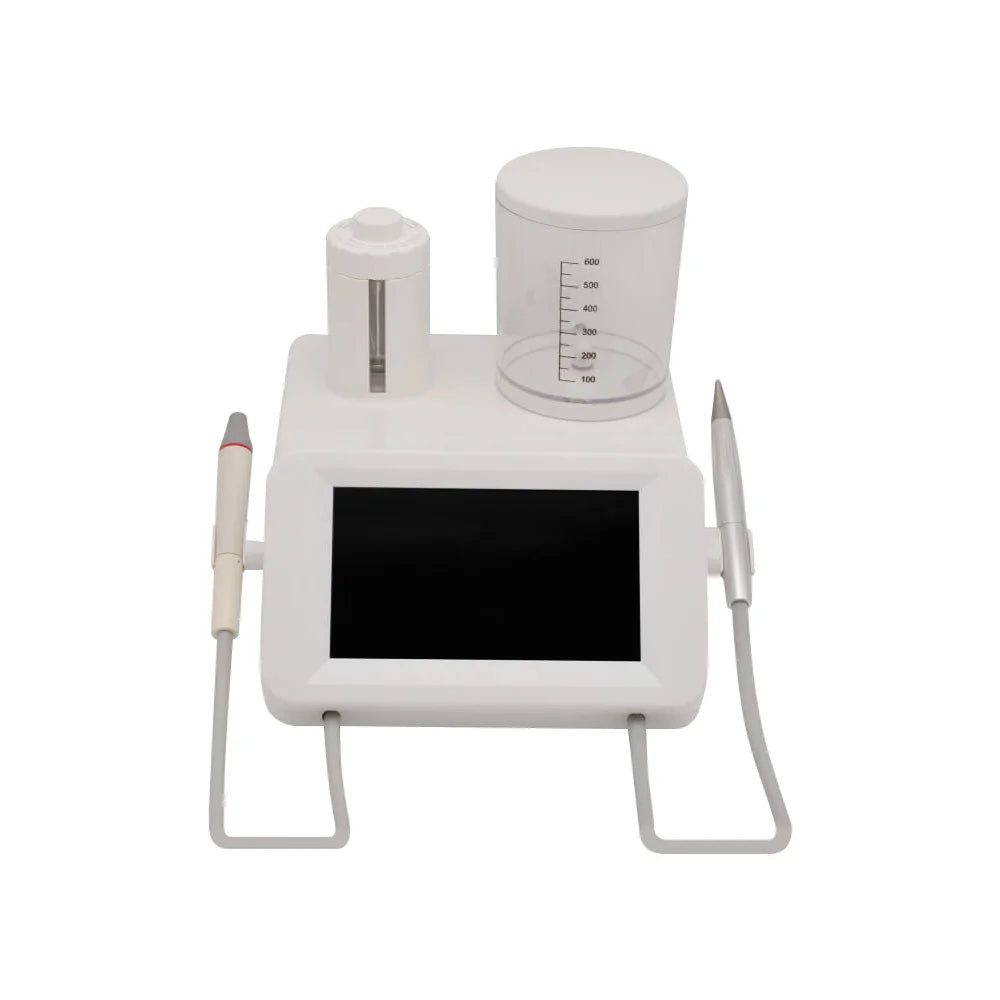

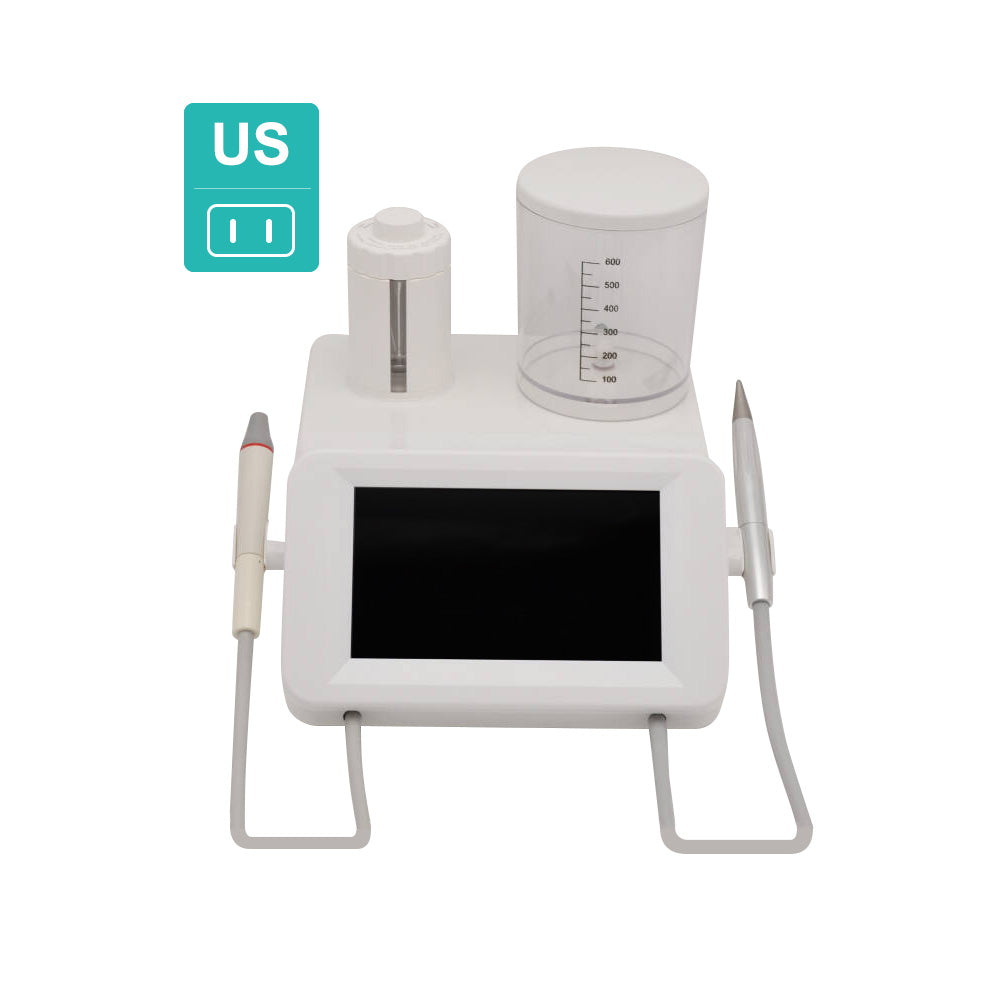

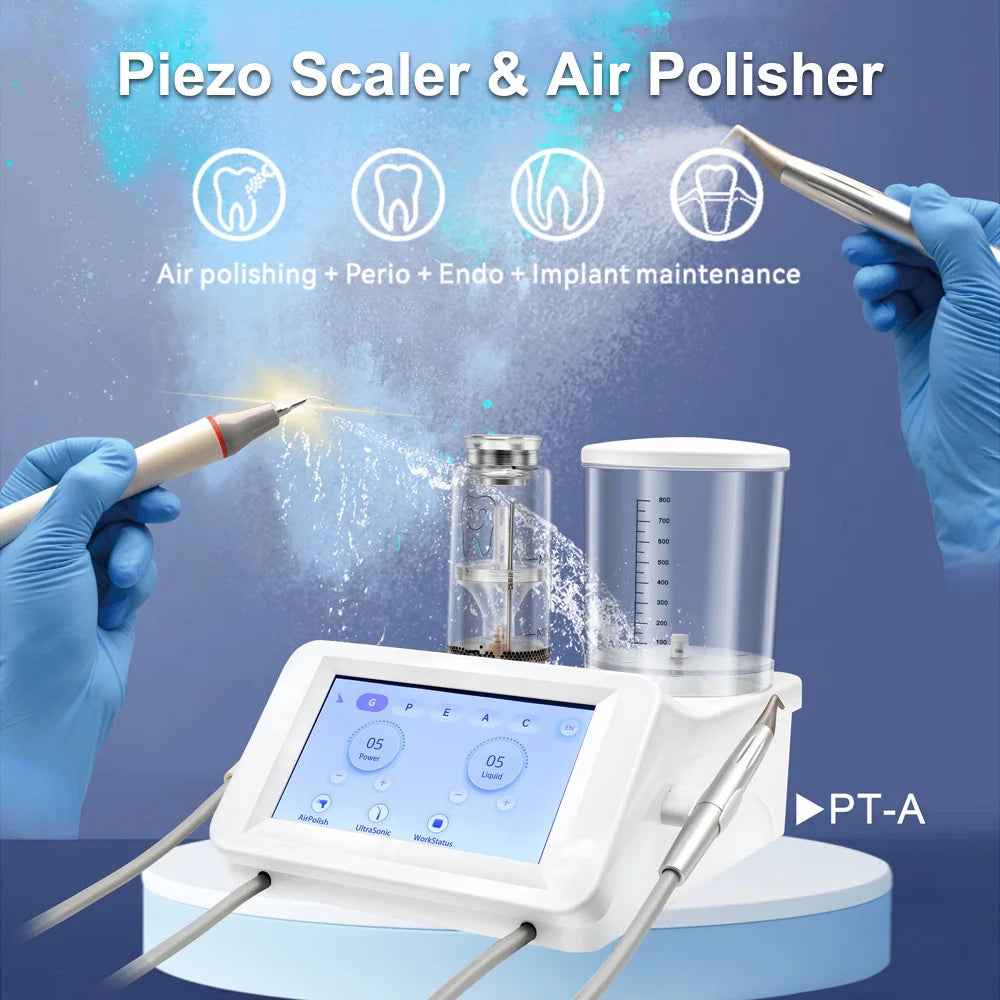

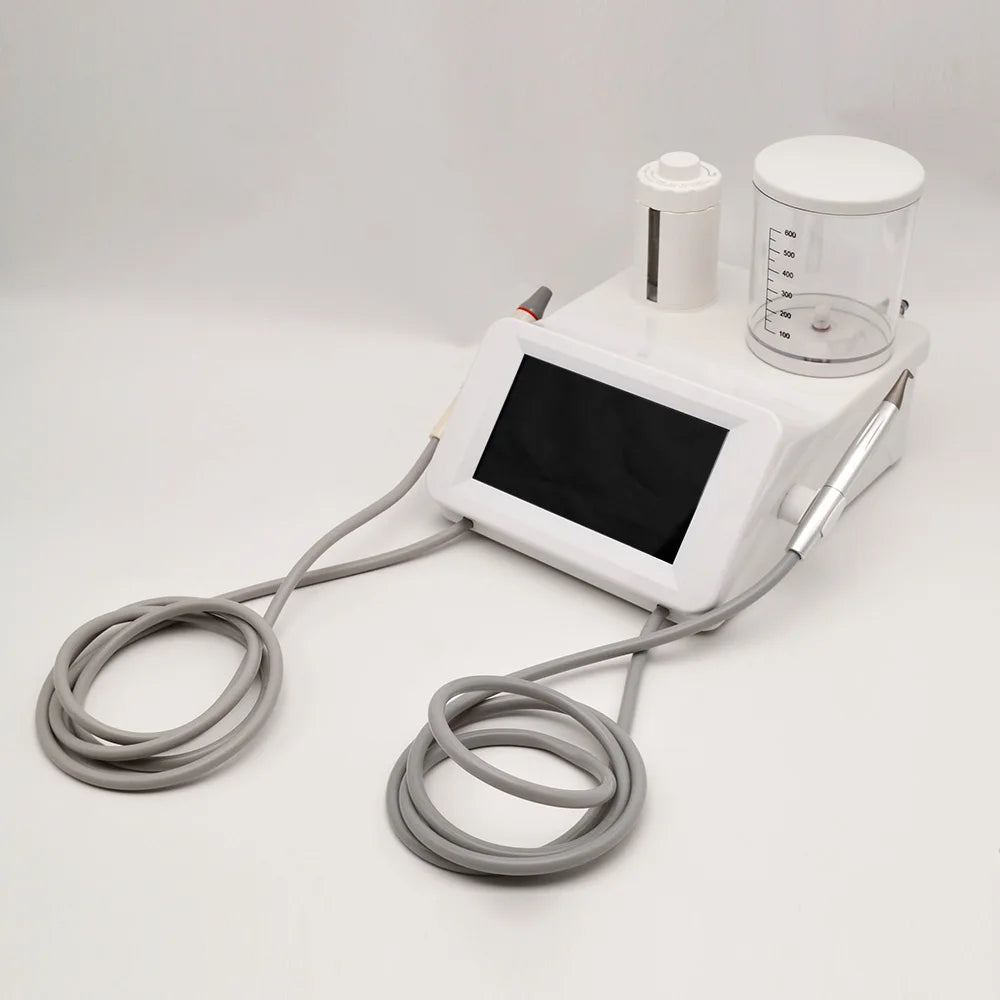

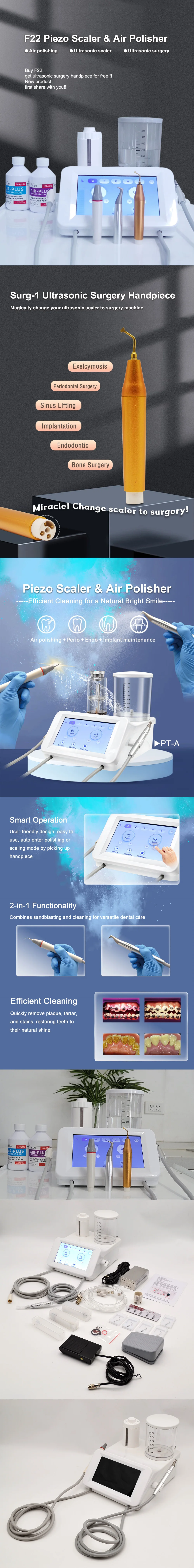

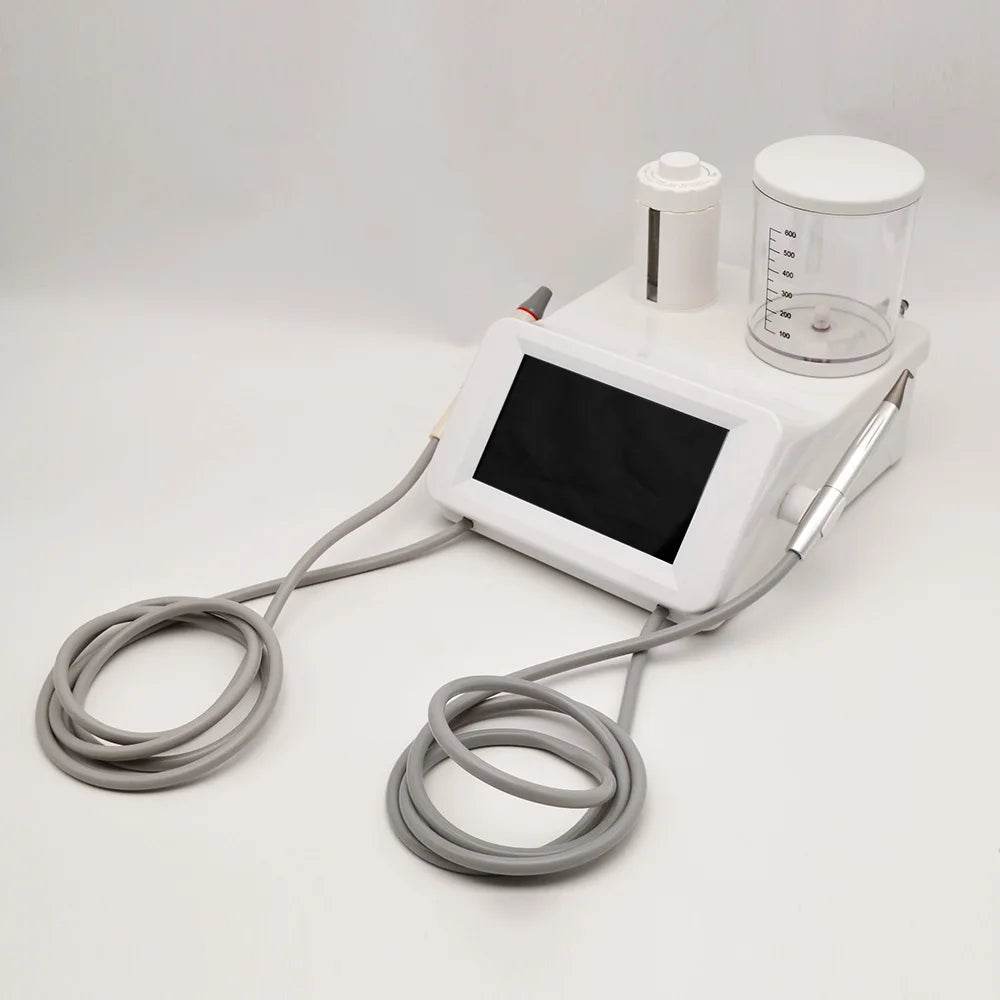

F22 Piezo Scaler & Air Polisher
● Main Function/Purpose:

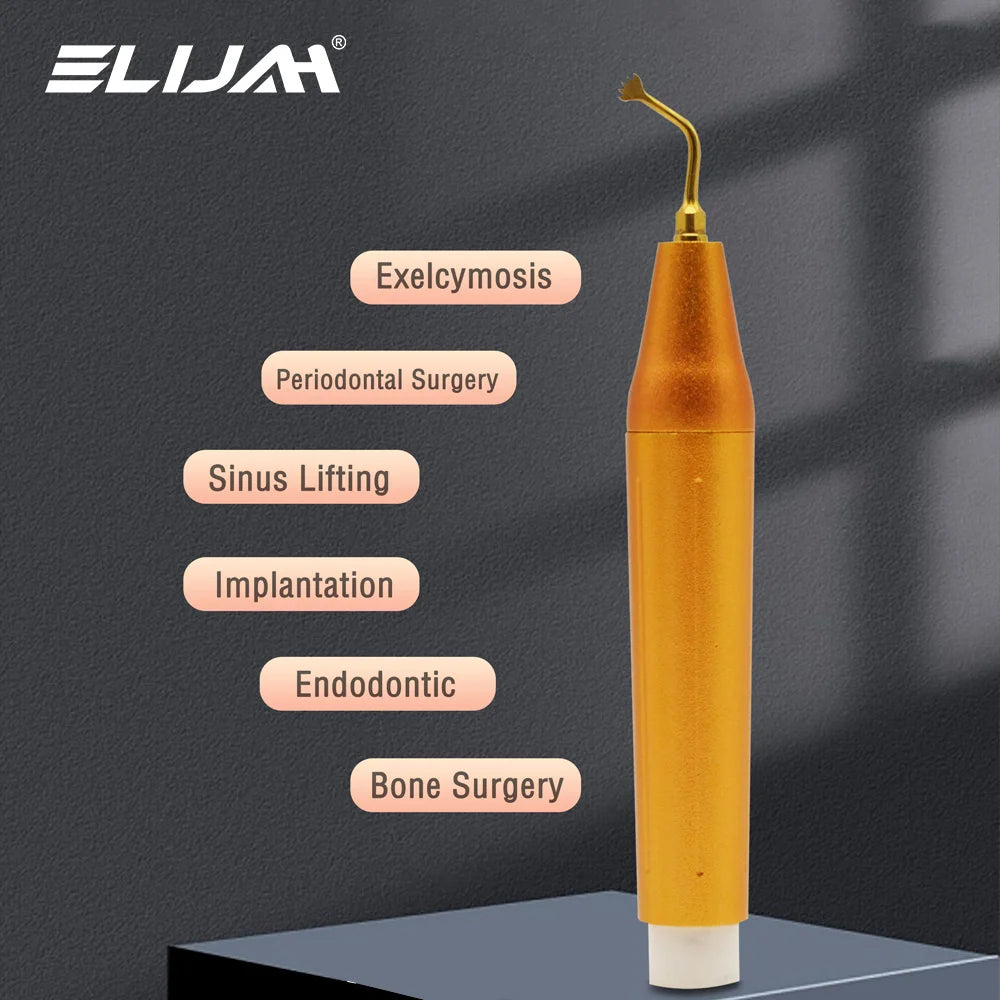

- Used for air polishing, ultrasonic scaling, and ultrasonic surgery in dental care. It efficiently cleans teeth by removing plaque, tartar, and stains, restoring their natural shine. Additionally, it can be converted into an ultrasonic surgery handpiece for various surgical procedures such as exlecymosis, periodontal surgery, sinus lifting, implantation, endodontic treatment, and bone surgery.
● Product Features/Advantages:

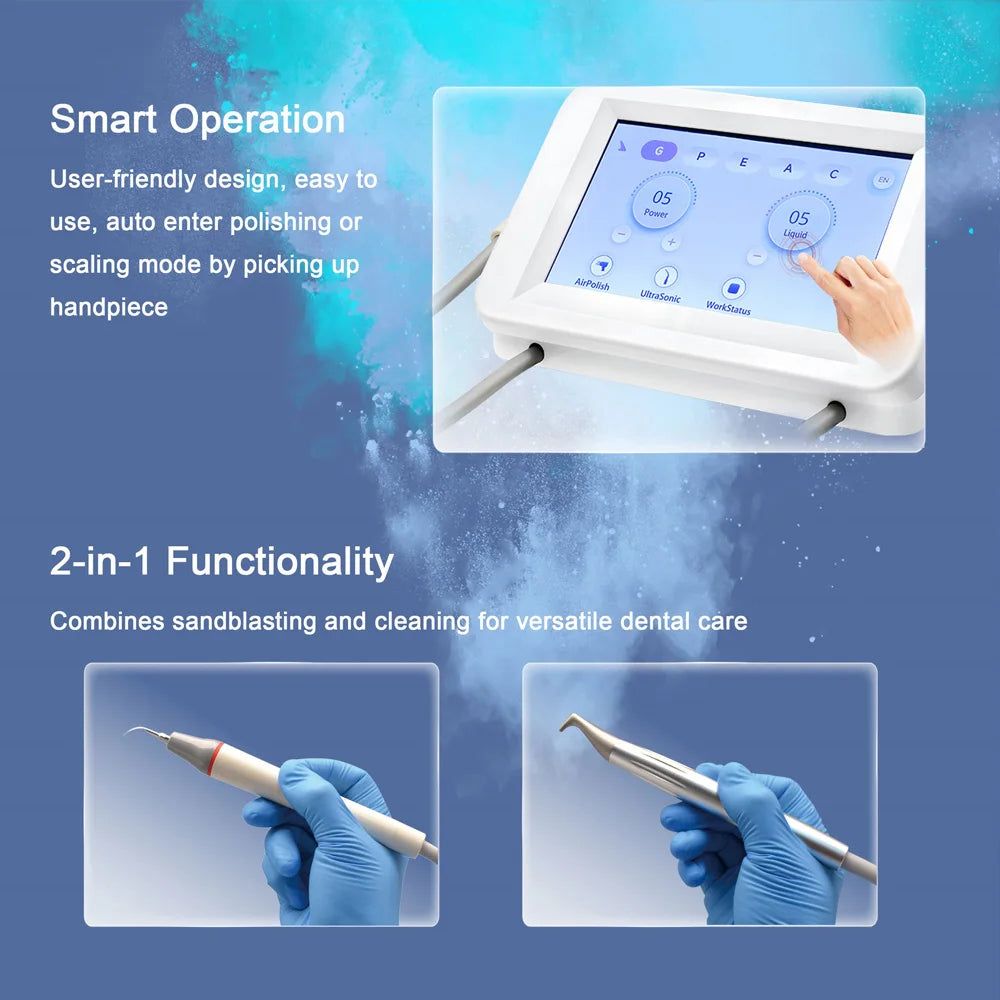

○ Smart Operation: User-friendly design with easy-to-use functionality. The device automatically enters the polishing or scaling mode by picking up the corresponding handpiece.
○ 2-in-1 Functionality: Combines sandblasting and cleaning capabilities, making it versatile for different dental care needs.
○ Efficient Cleaning: Quickly and effectively removes plaque, tartar, and stains, helping to restore teeth to their natural brightness and health.
○ Versatile Applications: Can be used for a wide range of dental procedures, including air polishing, periodontal treatment, endodontic procedures, and implant maintenance.
○ High Precision: Equipped with advanced technology to ensure precise and effective treatment, enhancing the overall dental care experience.
Technical parameters:
Intake air pressure: 5 bar to 6 bar
Tip amplitude: minimum 1μm, maximum:100μm
Output half-excursion force: min :0.1N, max: 5N
Tip vibrating frequency: 30Khz±5Khz
Host weight: 2.5kgs
Size: 28*22*12cm
Water flow rate: 0 ~ 120 ml/min
Installation instructions:
2.2 Check equipment list to make sure that the main unit and the accessories are complete.
2.3 Plug the host into the power cord and connect the wired foot switch.
2.4 Connect the ultrasonic scaling handpiece to tail wire, then put it on the handle bracket on the left, and install the working tip with a limited wrench.
2.5 Connect the air polishing handpiece to tail wire, then put it on the bracket on the right.
2.6 Install the sand bottle and the water tank on the main unit respectively. The sand bottle is on the left and the water tank is on the right.
2.7 Connect one end of air pipe with the air intake connector, insert the other end above the air filter valve. (The switch on the trachea remains closed.)

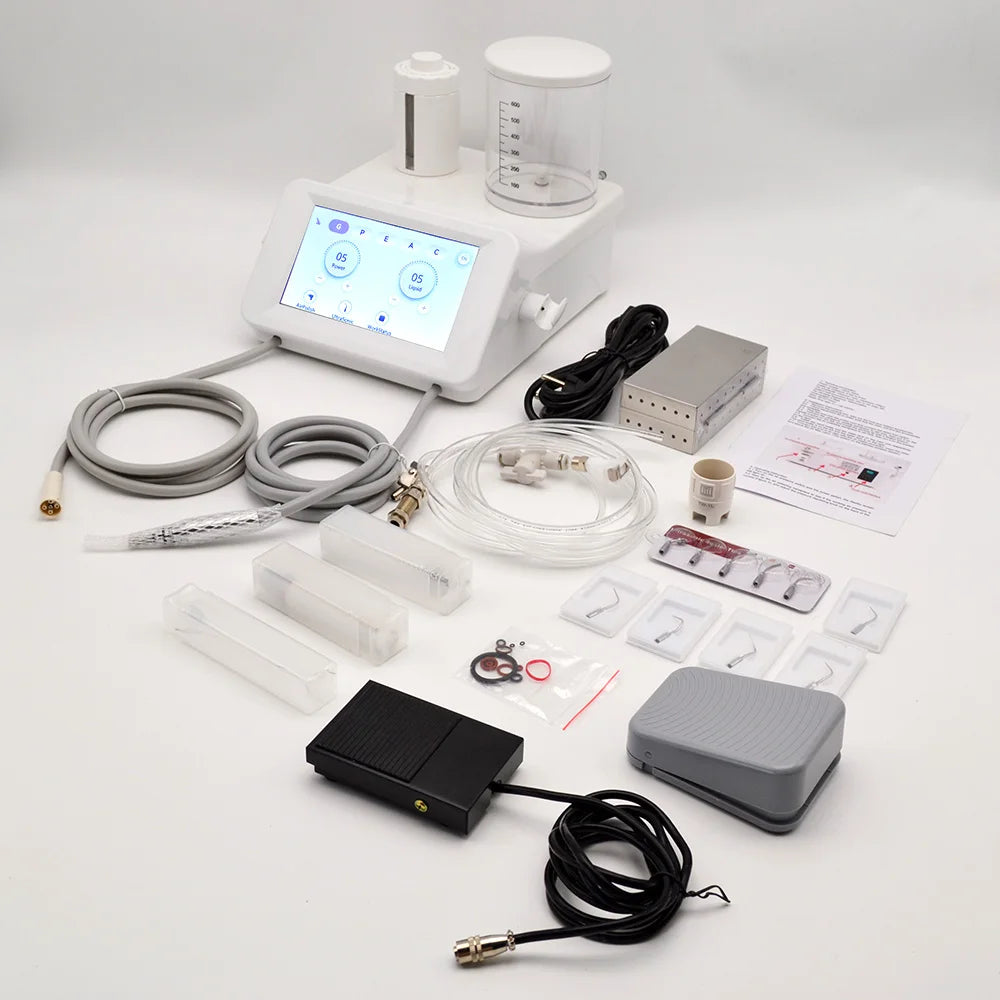

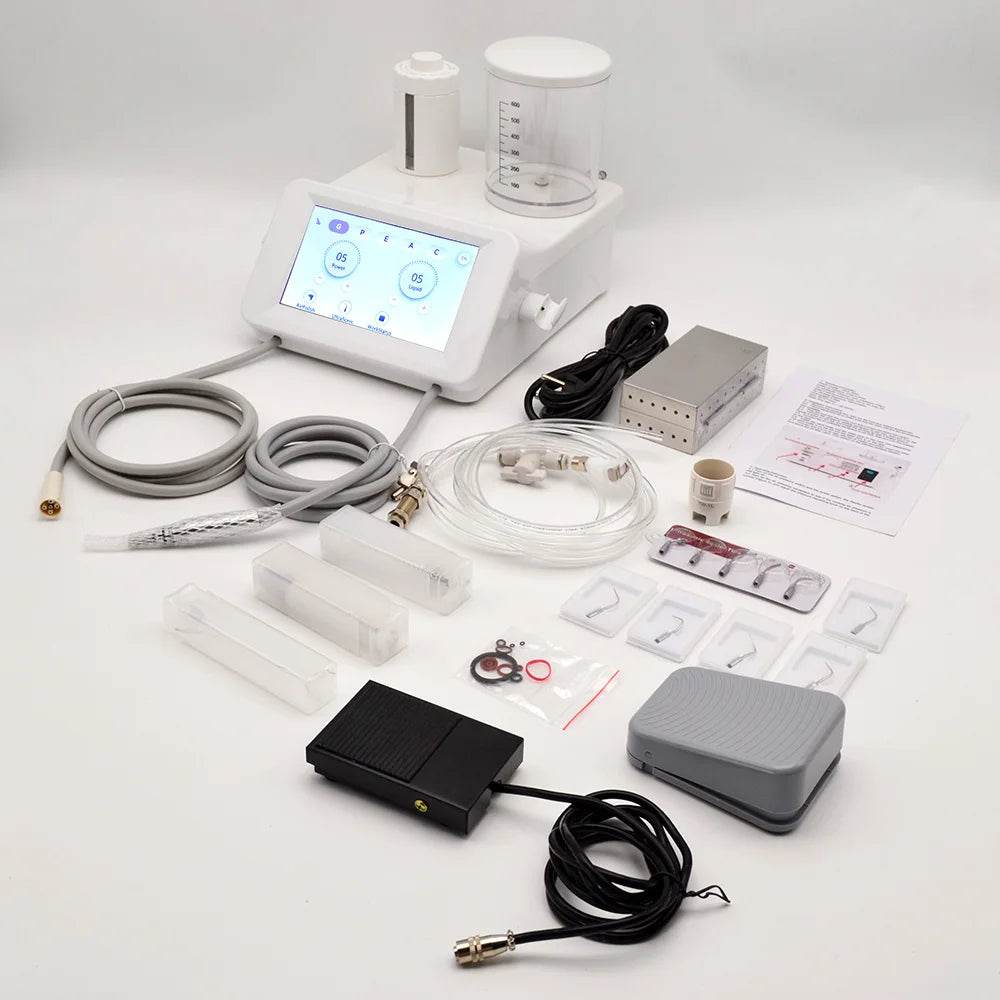

main unit *1
water tank *1
powder bottle *1
power cord *1
wired foot pedal *1
wireless foot pedal *1
tips *10
scaling handpiece *1
polishing handpiece *1
|



The equipments will have one year warranty. if having any problem, you can send us the pictures or videos, we will send you theparts for free as the replacement.
